| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Height | |
| Input Connector | |
| Input Frequency | |
| Input Type | |
| Input Voltage | |
| Length | |
| Medical Grade | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Overload Protection | |
| Polarization | |
| Power (Watts) | |
| Region Utilized | |
| Standard Number | |
| Storage Temperature | |
| Tape & Reel | |
| Voltage | |
| Width |

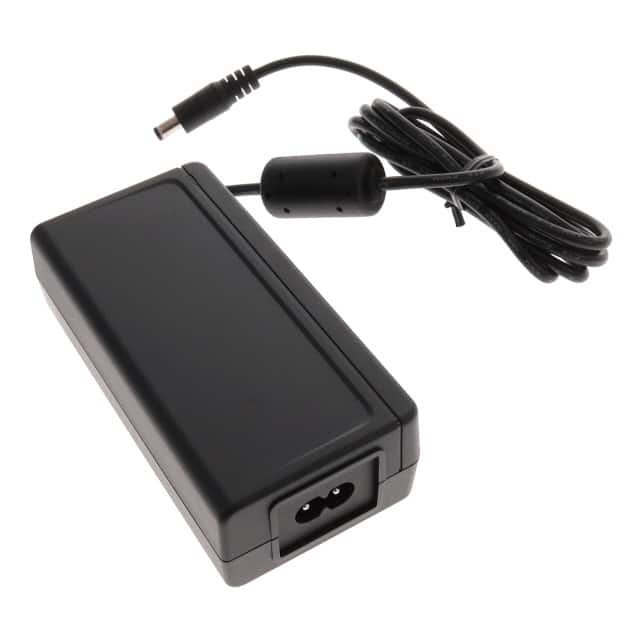

The Tri-Mag, LLC L6R65DM-150-C8 is a versatile 65W AC/DC desktop power supply suitable for medical applications. It features a universal input voltage range of 90-264Vac and operates at 47-63Hz.
This power supply delivers a stable 15V output with a current rating of 4.34A, offering a power output of 65W. It boasts a voltage accuracy of ±5% and load regulation of ±5% (typical), ensuring reliable performance. The unit complies with DOE Level VI efficiency standards and includes overvoltage, overload, and short circuit protection with auto-recovery.
Designed with a compact form factor (119.1mm x 59.9mm x 36.1mm), it utilizes an IEC 320-C8 input connector and a barrel plug output connector (2.1mm I.D. x 5.5mm O.D. x 9.5mm). The operating temperature range is 0°C to 40°C, and it is approved by CE, cULus, EN, FCC, and TUV, meeting the ANSI/AAMI/IEC/EN ES60601-1:2012 standard with 2xMOPP.
Key electrical specifications include a line regulation of ±1% and a maximum ripple and noise of 2% Vp-p. The MTBF is rated at 300,000 hours at 25°C. This model is designed for international use and comes with a 59-inch (1.50m) cord.
The L6R65DM-150-C8 provides a +15.0V output voltage at 4.34A.
This power supply has a power rating of 65W.
The L6R65DM-150-C8 accepts a universal input voltage range of 90 to 264 Vac.
Yes, it meets the DOE Level VI efficiency rating.
The dimensions are 119.1mm in length, 59.9mm in width, and 36.1mm in height.
It is approved under ANSI/AAMI/IEC/EN ES60601-1:2012 and offers 2xMOPP.
The operating temperature range is from 0°C to 40°C.
