| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Height | |
| Input Connector | |
| Input Frequency | |
| Input Type | |
| Input Voltage | |
| Length | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Polarization | |
| Power (Watts) | |
| Region Utilized | |
| Standard Number | |
| Voltage | |
| Width |

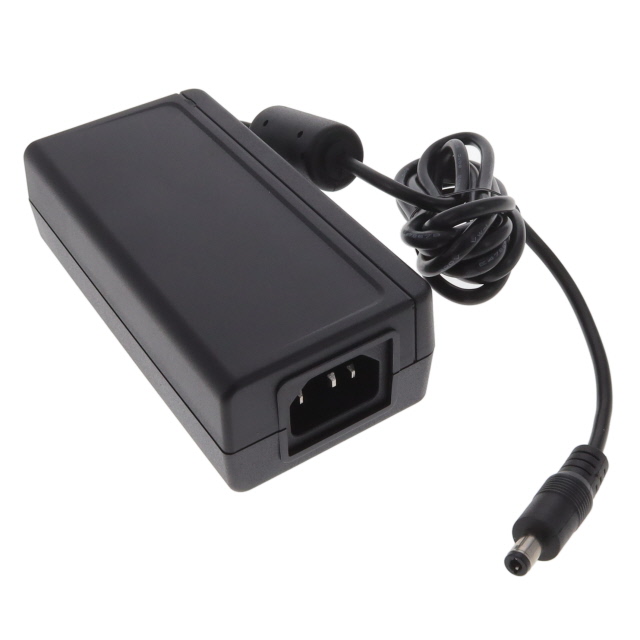

This L6R65DM Series AC/DC desktop adapter from Tri-Mag, LLC is rated at 65W and is specifically designed for medical applications. It offers a stable 15V output with a current capability of 4.34A.
The adapter features universal input voltage ranging from 90 to 264 VAC and operates at frequencies between 47 and 63 Hz. It meets DOE Level VI efficiency standards, ensuring energy savings. The input connection is an IEC 320-C14 type, and the output is delivered via a standard barrel plug.
Key electrical specifications include a line regulation of ±1% and a load regulation of ±5% typical. Ripple and noise are kept to a maximum of 2% Vp-p under full load conditions. The operating temperature range is from 0°C to 40°C.
With its compact dimensions of 119.1mm x 59.9mm x 36.1mm, this adapter is suitable for space-constrained designs. It is approved by CE, cULus, EN, FCC, and TUV, meeting stringent safety and performance requirements for medical equipment.
The L6R65DM-150-C14 provides a 15V output voltage at a rated current of 4.34A.
This adapter has a power rating of 65W.
The adapter supports a universal input voltage range of 90 to 264 VAC at frequencies of 47 to 63 Hz.
The input connector is an IEC 320-C14.
The operating temperature range is from 0°C to 40°C.
Yes, it meets the DOE Level VI efficiency rating.
