| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Height | |
| Input Connector | |
| Input Frequency | |
| Input Type | |
| Input Voltage | |
| Length | |
| Medical Grade | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Overload Protection | |
| Polarization | |
| Power (Watts) | |
| Region Utilized | |
| Standard Number | |
| Storage Temperature | |
| Voltage | |
| Width |

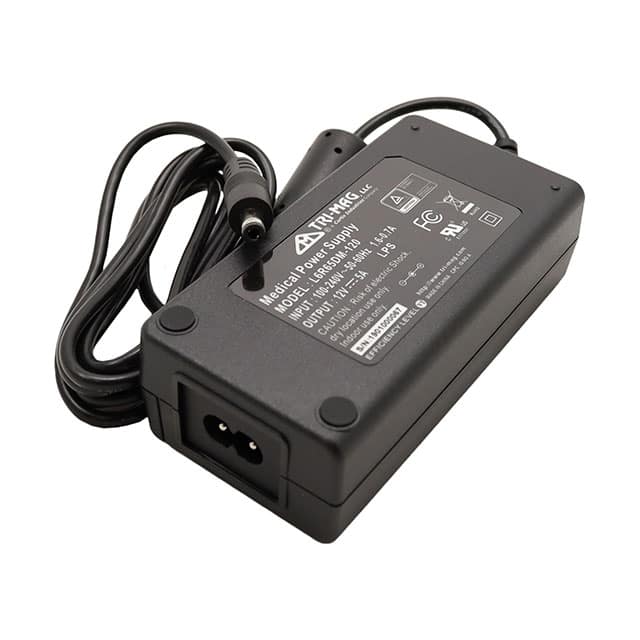

The Tri-Mag L6R65DM-120-C8 is a versatile 65W medical-grade AC/DC desktop power supply. It offers a stable 12V output with a maximum current of 5A, providing 60W of power. This unit is designed for universal input, accepting a wide range of voltages from 90 to 264Vac at 47/63Hz, making it suitable for international use.
Compliance with stringent medical standards is a key feature, including approval for ANSI/AAMI/IEC/EN ES60601-1:2012, with 2xMOPP means of protection. The power supply meets DOE Level VI efficiency standards, ensuring energy savings and reduced heat generation. It features an IEC 60320 C8 AC input connector and a corded output connection with a 2.1mm I.D. x 5.5mm O.D. barrel plug.
Designed for reliability, the L6R65DM-120-C8 has a Mean Time Between Failures (MTBF) of 300,000 hours at 25°C. It operates within a temperature range of 0°C to 40°C and includes overvoltage, overload, and short circuit protection with auto-recovery. The compact and lightweight design facilitates integration into various medical devices and systems.
The L6R65DM-120-C8 provides a +12.0V output voltage at a maximum current of 5.00A.
The power rating for the L6R65DM-120-C8 is 60W.
The L6R65DM-120-C8 supports a universal input voltage range of 90 to 264 Vac.
The L6R65DM-120-C8 has a DOE Level VI efficiency rating.
The L6R65DM-120-C8 is approved by CE, cULus, EN, FCC, and TUV, and meets ANSI/AAMI/IEC/EN ES60601-1:2012 standards with 2xMOPP.
The operating temperature range for the L6R65DM-120-C8 is 0°C to 40°C.
