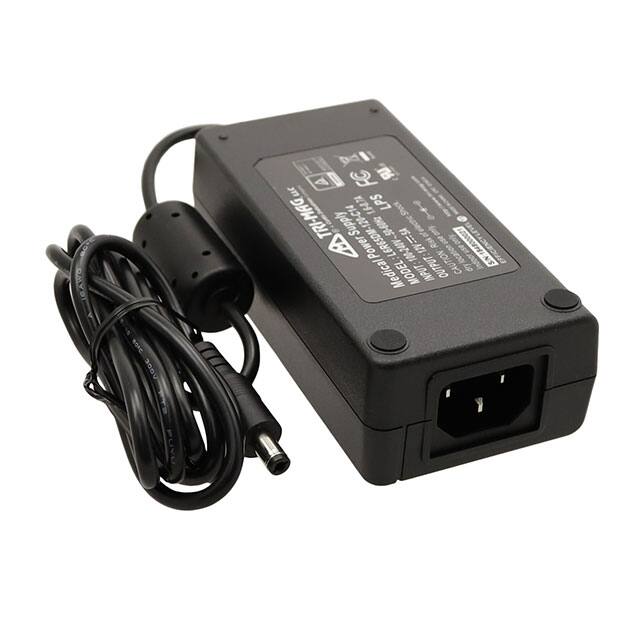

The Tri-Mag, LLC L6R65DM-120-C14 is a versatile 60W AC/DC desktop power supply designed for medical applications. It provides a stable 12V output with a maximum current of 5A.
This adapter meets DOE Level VI efficiency standards, ensuring energy savings and reduced heat generation. It features a universal input voltage range of 90-264Vac and a standard IEC 60320 C14 input connector. The output is delivered via a 2.1mm I.D. x 5.5mm O.D. barrel plug.
Key specifications include ±1% line regulation and ±5% typical load regulation, ensuring consistent power delivery. The operating temperature range is 0°C to 40°C. Safety approvals include CE, cULus, EN, FCC, and TUV, with compliance to ANSI/AAMI/IEC/EN ES60601-1:2012.
Its compact and lightweight design makes it suitable for various medical devices and equipment where reliable power is critical. The adapter also includes auto-recovery for overvoltage, overload, and short circuit protection.
The L6R65DM-120-C14 has an output voltage of 12V and a maximum output current of 5A.
The L6R65DM-120-C14 adapter has a power rating of 60W.
The L6R65DM-120-C14 meets the DOE Level VI efficiency rating.
The input voltage range is 90-264Vac, and the input frequency range is 47-63Hz.
The L6R65DM-120-C14 uses an IEC 320-C14 input connector.
The operating temperature range is 0°C to 40°C.
The L6R65DM-120-C14 complies with ANSI/AAMI/IEC/EN ES60601-1:2012 and has approvals from CE, cULus, EN, FCC, and TUV.
