| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Input Connector | |
| Input Frequency | |
| Input Type | |
| Input Voltage | |
| Medical Grade | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Overload Protection | |
| Polarization | |
| Power (Watts) | |
| Region Utilized | |
| Standard Number | |
| Storage Temperature | |
| Voltage |

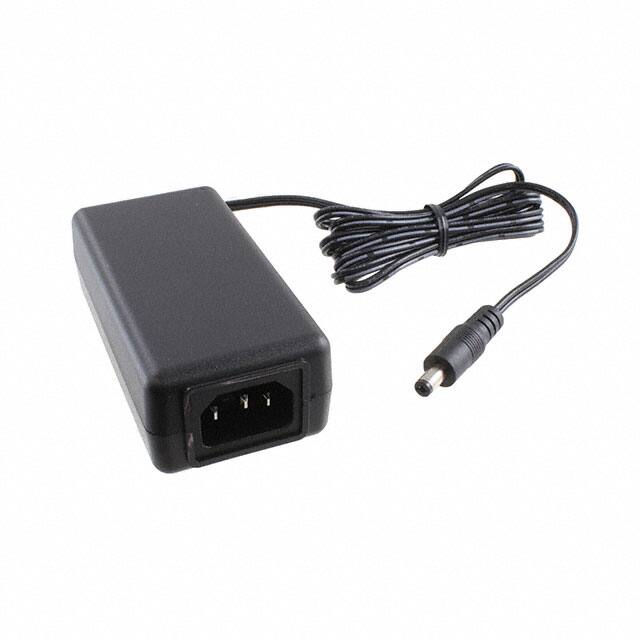

The Tri-Mag L6R36DM-150-C14 is a 36W AC/DC desktop power supply designed for medical applications. It features a universal input voltage range of 90-264Vac and operates at frequencies of 47-63Hz. The output provides 15V at a maximum current of 2.4A, delivering 36W of power.
This adapter complies with DOE Level VI efficiency standards and is approved under ANSI/AAMI ES60601-1:2012. It offers multiple safety approvals including CE, cULus, EN, FCC, and TUV, with 2xMOPP means of protection. The unit has a compact, lightweight design with an IEC 320-C14 input connector and a barrel plug output connector.
Key electrical specifications include line regulation of ±1% and load regulation of ±5% typical. It also features auto-recovery for overvoltage, overload, and short circuit protection. The operating temperature range is 0°C to 40°C, making it suitable for various environments.
The input voltage range is 90 to 264 Vac, with nominal 100-240 Vac.
The output voltage is 15Vdc nominal, with a maximum output current of 2.4A, providing 36W.
It is approved to ANSI/AAMI ES60601-1:2012 edition 3.1 with 2xMOPP, and carries CE, cULus, EN, FCC, TUV markings.
The operating temperature range is 0°C to 40°C.
Overvoltage, overload, and short circuit protections are all auto recovery type.
The adapter meets Level VI efficiency requirements.
It is a desktop (Class I) adapter with a barrel plug output: 2.1mm I.D. x 5.5mm O.D. x 9.5mm, positive center.
