| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Height | |
| Input Connector | |
| Input Frequency | |
| Input Type | |
| Input Voltage | |
| Length | |
| Medical Grade | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Overload Protection | |
| Polarization | |
| Power (Watts) | |
| Region Utilized | |
| Standard Number | |
| Storage Temperature | |
| Tape & Reel | |
| Voltage | |
| Width |

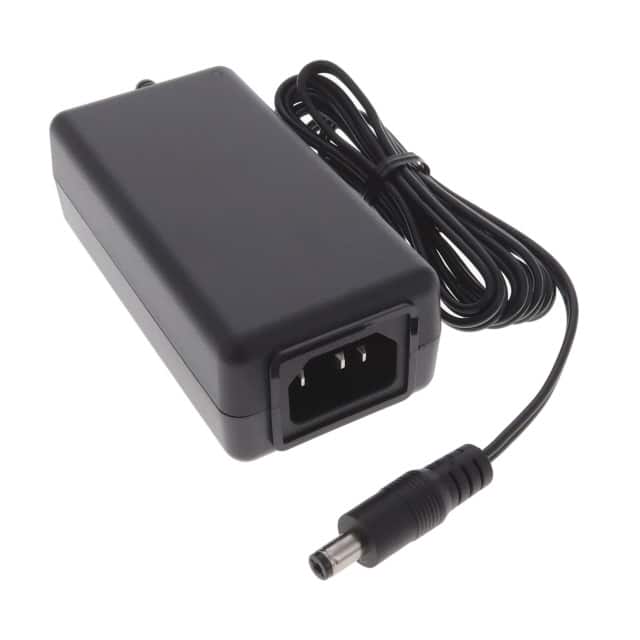

The Tri-Mag, LLC L6R36DM-120-C14 is a versatile 36W AC/DC desktop power adapter designed for medical applications. It features a universal input voltage range of 90-264Vac and an output of 12V at 3A.
This adapter complies with DOE Level VI efficiency standards and is approved to ANSI/AAMI/IEC/EN ES60601-1:2012, with 2xMOPP means of protection. It includes an IEC 60320 C14 input connector and a standard barrel plug output connector.
Key specifications include ±1% line regulation, ±5% load regulation, and a maximum ripple and noise of 2% Vp-p. The operating temperature range is 0°C to 40°C. The compact and lightweight design makes it suitable for various medical equipment.
It offers auto-recovery for overvoltage, overload, and short circuit protection. The MTBF is rated at 300,000 hours at 25°C.
The L6R36DM-120-C14 provides an output voltage of 12V at a current of 3A.
The power rating for this adapter is 36W.
The adapter meets the DOE Level VI efficiency rating.
It is approved to ANSI/AAMI/IEC/EN ES60601-1:2012, edition 3.1.
The operating temperature range is 0°C to 40°C.
The input connector is an IEC 320-C14.
The output connector is a Barrel Plug with 2.1mm I.D. x 5.5mm O.D. x 9.5mm.
