| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Height | |
| Input Connector | |
| Input Frequency | |
| Input Type | |
| Input Voltage | |
| Length | |
| Medical Grade | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Overload Protection | |
| Polarization | |
| Power (Watts) | |
| Region Utilized | |
| Standard Number | |
| Storage Temperature | |
| Voltage | |
| Width |

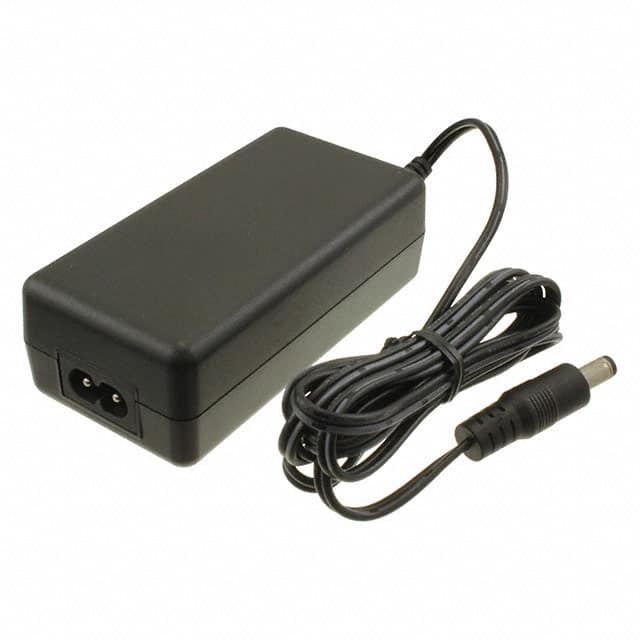

The Tri-Mag, LLC L6R36DM-090-C8 is a versatile 36W AC/DC desktop power supply designed for medical applications. It features a universal input voltage range of 90-264Vac and provides a stable 9V output at up to 4A.
This power supply meets stringent safety standards, including ANSI/AAMI ES60601-1:2012, and offers 2xMOPP means of protection, making it suitable for medical equipment. It boasts DOE Level VI efficiency, ensuring reduced energy consumption.
The unit utilizes an IEC 60320 C8 input connector and a barrel plug output connector (2.1mm I.D. x 5.5mm O.D.). Its compact dimensions (100.1mm x 50.0mm x 33.0mm) and desktop form factor make it easy to integrate into various systems. The operating temperature range is 0°C to 40°C.
The L6R36DM-090-C8 provides a 9V output voltage at a maximum current of 4A.
The L6R36DM-090-C8 has a power rating of 36W.
Yes, the L6R36DM-090-C8 meets the DOE Level VI efficiency rating.
The L6R36DM-090-C8 is approved to ANSI/AAMI ES60601-1:2012, edition 3.1 and has CE, cULus, EN, FCC, and TUV agency approvals.
The operating temperature range for the L6R36DM-090-C8 is 0°C to 40°C.
The L6R36DM-090-C8 uses an IEC 60320 C8 input connector.
