| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Height | |
| Input Connector | |
| Input Frequency | |
| Input Type | |
| Input Voltage | |
| Length | |
| Medical Grade | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Overload Protection | |
| Polarization | |
| Power (Watts) | |
| Region Utilized | |
| SVHC Present | |
| Standard Number | |
| Storage Temperature | |
| Voltage | |
| Width |

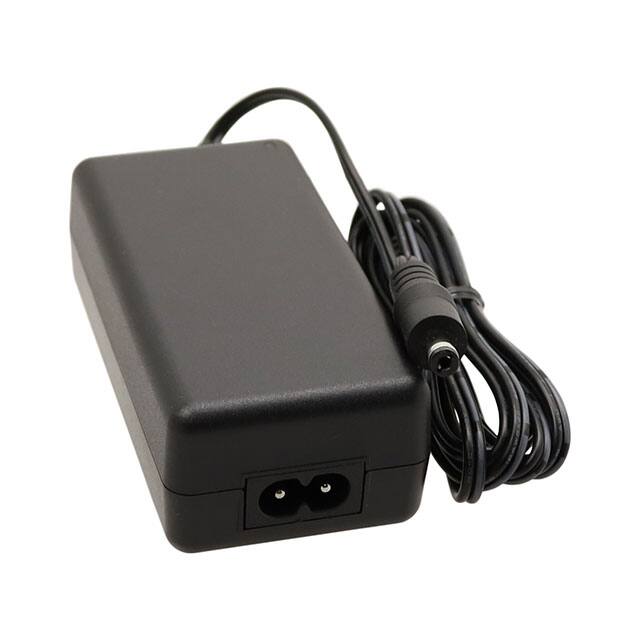

The Tri-Mag, LLC L6R36DM-075-C8 is a versatile 30W AC/DC desktop power supply designed for medical applications, adhering to stringent safety standards like ANSI/AAMI ES60601-1:2012.
This adapter features a universal input voltage range of 90-264Vac and a stable 7.5Vdc output with a maximum current of 4.00A. It boasts DOE Level VI efficiency, ensuring reduced energy consumption. The unit is equipped with an IEC 320-C8 input connector and a standard barrel plug output (2.1mm I.D. x 5.5mm O.D.).
Key electrical specifications include ±1% line regulation and ±5% typical load regulation, with a maximum ripple and noise of 2% Vp-p. It offers auto-recovery for overvoltage, overload, and short circuit protection. The operating temperature range is 0°C to 40°C, and it has an MTBF of 300,000 hours at 25°C.
Designed for ease of use and safety, this compact desktop adapter is suitable for various medical equipment and other applications requiring reliable, regulated DC power.
The L6R36DM-075-C8 provides a +7.5Vdc output voltage at a rated current of 4.00A.
The power rating for this adapter is 30W.
The adapter accepts a universal input voltage range of 90 to 264 Vac.
Yes, it meets the DOE Level VI efficiency rating.
It is approved by CE, cULus, EN, FCC, and TUV, and meets ANSI/AAMI ES60601-1:2012.
The operating temperature range is from 0°C to 40°C.
It uses an IEC 320-C8 input connector.
