| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Input Connector | |
| Input Frequency | |
| Input Type | |
| Input Voltage | |
| Medical Grade | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Output Current | |
| Output Voltage | |
| Overload Protection | |
| Polarization | |
| Power | |
| Power (Watts) | |
| Region Utilized | |
| Standard Number | |
| Storage Temperature | |
| Voltage |

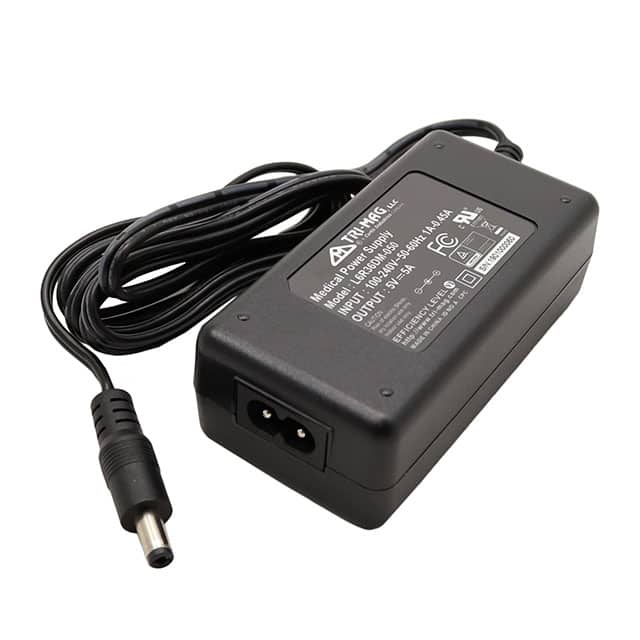

This Tri-Mag, LLC L6R36DM-050-C8 is an AC/DC desktop power supply designed for medical applications. It provides a stable 5V output at up to 5A, delivering a total of 25W of power. The adapter meets DOE Level VI efficiency standards, ensuring energy savings.
Key features include universal input voltage (90-264 VAC) and an IEC 60320 C8 input connector. The output is delivered via a standard barrel plug (2.1mm I.D. x 5.5mm O.D. x 9.5mm). The unit operates within a temperature range of 0°C to 40°C and has dimensions of 100.1mm x 50.0mm x 33.0mm.
Safety and compliance are assured with approvals from CE, cULus, EN, FCC, and TUV, and it meets the ANSI/AAMI ES60601-1:2012 standard with 2xMOPP means of protection. The adapter includes auto-recovery for overvoltage, overload, and short circuit protection.
The output is +5.0 VDC at 5.00 A.
It accepts 90 to 264 VAC at 47 to 63 Hz.
It meets DoE Level VI and ErP Stage 2.
It uses a barrel plug with 2.1mm I.D. and 5.5mm O.D., positive center.
The operating temperature range is 0°C to 40°C.
It is approved to CE, cULus, EN, FCC, and TUV standards, with 2xMOPP protection.
