| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Applications | |
| Approval Agency | |
| Automotive Grade | |
| Cord Length | |
| Current | |
| Form | |
| Height | |
| Industrial Grade | |
| Input Connector | |
| Input Frequency | |
| Input Type | |
| Input Voltage | |
| Length | |
| Medical Grade | |
| Military Grade | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Overload Protection | |
| Polarization | |
| Power (Watts) | |
| Region Utilized | |
| Standard Number | |
| Storage Temperature | |
| Voltage | |
| Width |

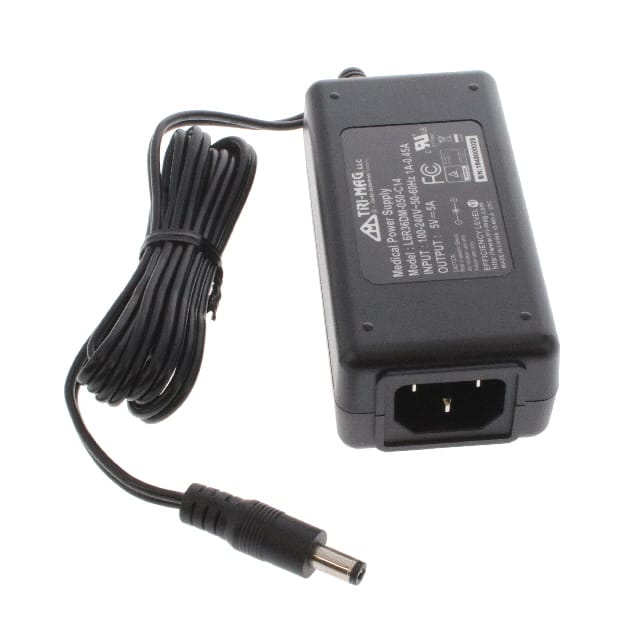

This Tri-Mag, LLC L6R36DM-050-C14 is a versatile 25W AC/DC desktop power supply designed for medical applications. It provides a stable 5V output at up to 5A, with voltage accuracy of ±5% and load regulation of ±5% typical.
The adapter features universal input from 90-264 Vac and operates at frequencies between 47-63 Hz. It boasts DOE Level VI efficiency and meets stringent safety standards including ANSI/AAMI ES60601-1:2012, with 2xMOPP means of protection. The input connector is an IEC 320-C14, and the output is a standard barrel plug with a positive center.
With a compact desktop form factor (Class I), it measures 100.1mm x 50.0mm x 33.0mm. The operating temperature range is 0°C to 40°C, and it includes auto-recovery protection for overvoltage, overload, and short circuits. The MTBF is rated at 300,000 hours at 25°C.
The input voltage range is 90 to 264 Vac with a nominal of 100-240 Vac.
The output is 5 Vdc at 5 A maximum, providing 25 W.
The operating temperature range is 0°C to 40°C.
It uses a barrel plug with 2.1 mm inner diameter and 5.5 mm outer diameter, center positive, with a 1.5 m cable.
It is approved to CE, cULus, EN, FCC, TUV, and meets medical standard 60601-1 with 2xMOPP.
The adapter meets Level VI efficiency standard.
Yes, it has overload and short-circuit protection with auto recovery.
