| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Height | |
| Input Connector | |
| Input Frequency | |
| Input Type | |
| Input Voltage | |
| Insulation Resistance | |
| Length | |
| Mounting Type | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Output Current | |
| Overload Protection | |
| Power (Watts) | |
| Region Utilized | |
| SVHC Present | |
| Standard Number | |
| Voltage | |
| Weight | |
| Width |

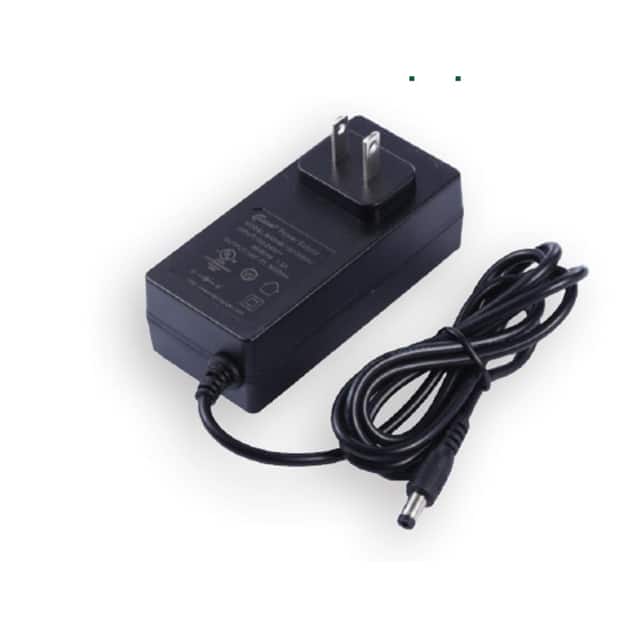

The Tri-Mag, LLC L6R36-090 is a 36W AC/DC wall mount power supply designed for Information Technology Equipment (ITE) applications. It offers a stable 9Vdc output with a maximum current of 3.3A.
This adapter operates with a universal input voltage range of 90 to 264Vac at 47-63Hz, making it suitable for global use. It meets DOE Level VI efficiency standards, ensuring energy savings. The device features auto-recovery for overvoltage, overload, and short circuit protection.
Key specifications include a line regulation of ±1% and load regulation of ±5%. The output connector is a standard 2.1mm I.D. x 5.5mm O.D. x 9.5mm barrel plug. The unit has a compact and lightweight design, with dimensions of 97.0 x 45.0 x 34.6 mm and weighs approximately 200g.
Safety approvals include UL, cUL, and FCC compliance. The operating temperature range is from 0°C to 40°C. This power supply is ideal for powering portable equipment, POS devices, and other small electronic devices requiring a reliable 9V power source.
90-264Vac
9.0Vdc at 3.3A, 36W
0°C to 40°C
Level VI
UL60950-1 and cUL60950-1
Wall Mount (Class II)
Auto recovery for overvoltage, overload, and short circuit
