| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Applications | |
| Approval Agency | |
| Automotive Grade | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Height | |
| Industrial Grade | |
| Input Connector | |
| Input Type | |
| Length | |
| Medical Grade | |
| Military Grade | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Polarization | |
| Power (Watts) | |
| Region Utilized | |
| Voltage | |
| Width |

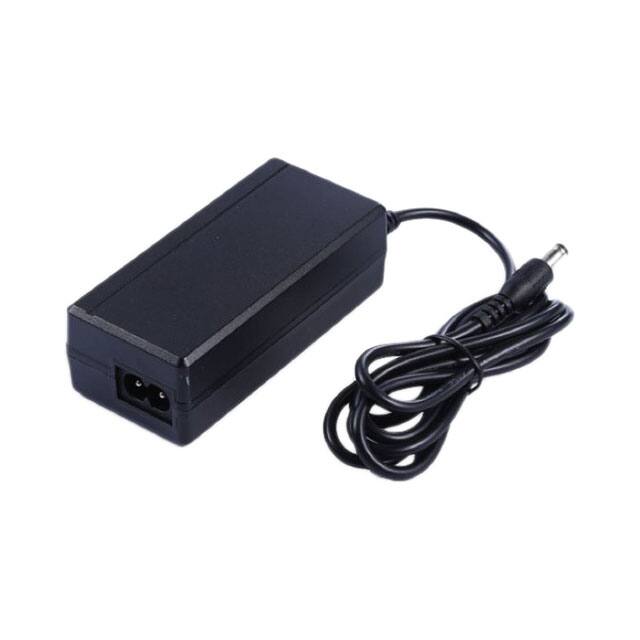

The Tri-Mag, LLC L6R30D-360-C8 is a versatile AC/DC desktop adapter designed for ITE (Commercial) applications. It delivers a stable 36V output at 830mA, with a total power rating of 30W. This adapter meets Level VI efficiency standards, ensuring optimal energy usage.
The unit utilizes an IEC 320-C8 input connector and provides a standard barrel plug output with dimensions of 2.1mm I.D. x 5.5mm O.D. x 9.5mm, featuring positive center polarization. Its compact dimensions are 91.9mm x 45.4mm x 27.5mm, making it suitable for various setups. The operating temperature range is from 0°C to 40°C, and it has a low no-load power consumption of a maximum of 100mW.
Designed for international use, this adapter is compliant with cUL, FCC, and UL approval agencies. The input cord is sold separately and has a length of 1.50m (59").
36V
830mA
0°C to 40°C
Level VI
IEC 320-C8
Positive center
100mW max
