| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Applications | |
| Approval Agency | |
| Automotive Grade | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Height | |
| Industrial Grade | |
| Input Connector | |
| Input Frequency | |
| Input Type | |
| Input Voltage | |
| Length | |
| Medical Grade | |
| Military Grade | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Overload Protection | |
| Power (Watts) | |
| Region Utilized | |
| SVHC Present | |
| Standard Number | |
| Storage Temperature | |
| Voltage | |
| Width |

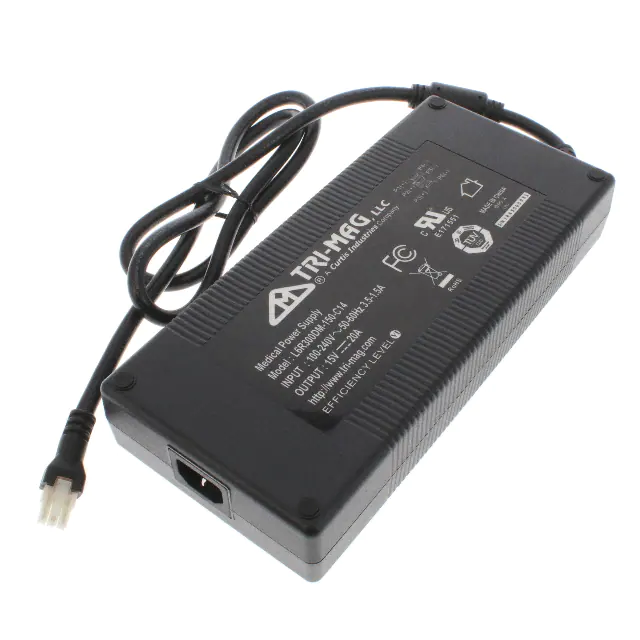

The Tri-Mag, LLC L6R300DM-150-C14 is a high-performance AC/DC desktop power supply delivering 300W of power with a regulated 15V output. Designed for demanding applications, it boasts a universal input voltage range of 90-264 VAC and operates efficiently with a Level VI rating.
This power supply is specifically approved for medical applications, meeting standards such as ANSI/AAMI ES60601-1 and IEC/EN ES60601-1, with 2xMOPP means of protection. It features an IEC 60320 C14 input connector and a 6-position rectangular output connector.
Key electrical specifications include a maximum output current of 20A, line regulation of ±1%, and load regulation of ±5% typical. It also offers overvoltage, overload, and short circuit protection with auto-recovery. The compact dimensions are 254.0mm x 116.0mm x 47.0mm, making it suitable for integration into various systems. The operating temperature range is 0°C to 40°C.
The L6R300DM-150-C14 has an output voltage of 15V and a maximum output current of 20A.
The input voltage range is 90 to 264 VAC.
This power supply meets the DOE Level VI efficiency rating.
The operating temperature range is 0°C to 40°C.
It is approved to ANSI/AAMI ES60601-1:2012 and IEC/EN ES60601-1:2012 standards.
It uses an IEC 60320 C14 input connector.
