| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Height | |
| Input Connector | |
| Input Frequency | |
| Input Type | |
| Input Voltage | |
| Length | |
| Medical Grade | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Overload Protection | |
| Power (Watts) | |
| Region Utilized | |
| SVHC Present | |
| Standard Number | |
| Storage Temperature | |
| Voltage | |
| Width |

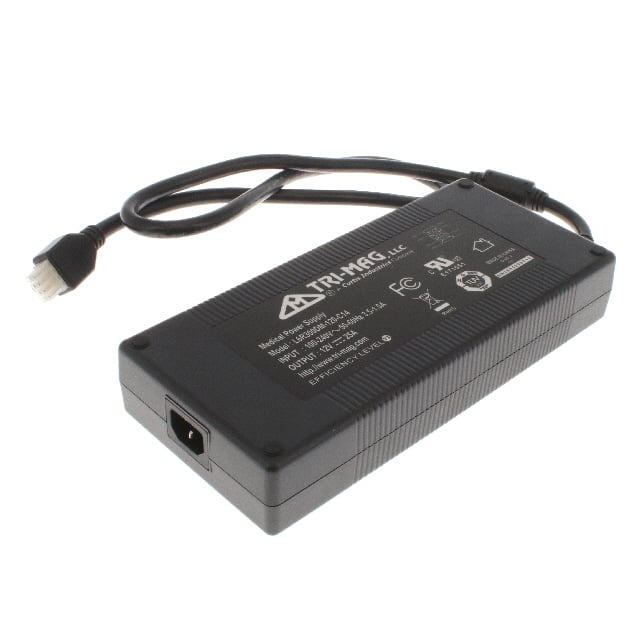

The Tri-Mag, LLC L6R300DM-120-C14 is a high-performance 300W AC/DC desktop power supply specifically designed for medical applications. It provides a stable 12V output voltage with a maximum current of 25A.
This power supply meets DOE Level VI efficiency standards and features a universal input voltage range of 90-264Vac. It is approved to ANSI/AAMI/IEC/EN ES60601-1:2012 standards, ensuring safety and reliability in medical environments. The unit includes 2xMOPP (Means of Protection) and an IEC 60320 C14 AC input connector.
Key features include a wide operating temperature range from 0°C to 40°C, low no-load power consumption (<0.15W), and comprehensive protection features such as overvoltage, overload, and short circuit protection with auto-recovery. The compact and lightweight design makes it suitable for various medical equipment.
With a 2-year warranty and an MTBF of 300,000 hours at 25°C, the L6R300DM-120-C14 offers robust performance and longevity for critical medical device power needs.
The L6R300DM-120-C14 provides a +12.0V output voltage at a maximum current of 25.00A.
The power rating for this power supply is 300W.
The power supply accepts a universal input voltage range of 90 to 264 Vac.
Yes, it meets the DOE Level VI efficiency rating.
It is approved to ANSI/AAMI ES60601-1:2012 and IEC/EN ES60601-1:2012 standards.
The operating temperature range is from 0°C to 40°C.
It uses an IEC 60320 C14 AC input connector.
