| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Height | |
| Industrial Grade | |
| Input Connector | |
| Input Frequency | |
| Input Type | |
| Input Voltage | |
| Insulation Resistance | |
| Length | |
| Mounting Type | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Power (Watts) | |
| Region Utilized | |
| SVHC Present | |
| Standard Number | |
| Storage Temperature | |
| Voltage | |
| Width |

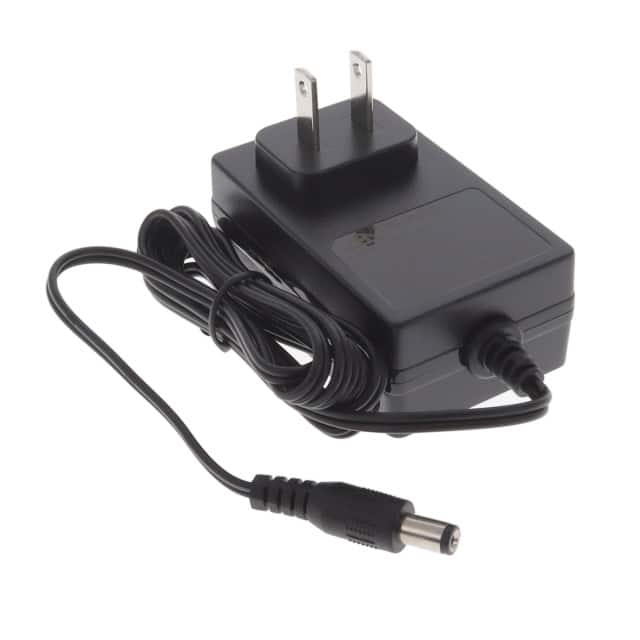

The Tri-Mag, LLC L6R30-360 is an AC/DC wall mount power supply designed for Information Technology Equipment (ITE) applications. It delivers a reliable 36V output at up to 30W of power, with a maximum output current of 830mA.
This power supply meets DOE Level VI efficiency standards, ensuring energy savings and reduced heat generation. It operates with a universal input voltage range of 90 to 264Vac and a frequency of 47 to 63Hz. The unit features a compact, lightweight wall mount form factor with a NEMA 1-15P input connector and a standard 2.1mm I.D. x 5.5mm O.D. x 9.5mm barrel plug output connector.
Key specifications include line regulation of ±1% and load regulation of ±5%, with a maximum ripple and noise of 100mVp-p. The operating temperature range is 0°C to 40°C. The L6R30-360 is approved by UL, cUL, and FCC, making it suitable for commercial applications.
The L6R30-360 has an output voltage of 36Vdc.
The L6R30-360 provides a maximum output power of 30W.
The L6R30-360 meets the DOE Level VI efficiency rating.
The L6R30-360 accepts a universal input voltage range of 90 to 264Vac.
The L6R30-360 operates within a temperature range of 0°C to 40°C.
