| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Height | |
| Input Connector | |
| Input Frequency | |
| Input Type | |
| Input Voltage | |
| Length | |
| Medical Grade | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Overload Protection | |
| Power (Watts) | |
| Region Utilized | |
| SVHC Present | |
| Standard Number | |
| Storage Temperature | |
| Voltage | |
| Width |

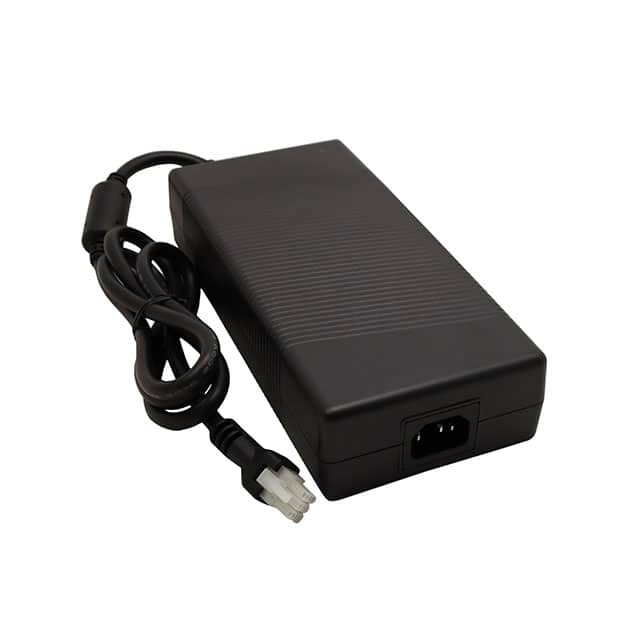

The Tri-Mag L6R250DM-240-C14 is a 250-watt AC/DC desktop power adapter that delivers a regulated 24Vdc output at up to 10.4 amps. It accepts a universal input voltage range of 90 to 264 Vac with a frequency of 47 to 63 Hz, making it suitable for worldwide use. The adapter meets DOE Level VI efficiency standards and includes a no-load input power of less than 0.15W.
This desktop-style adapter is Class I with an IEC 60320 C14 input connector and a 59-inch output cord terminated in a rectangular 6-position connector. It provides comprehensive protection features including overvoltage, overload, and short circuit protection with auto recovery. The unit is certified to medical safety standards ANSI/AAMI ES60601-1 and IEC/EN ES60601-1 with 2xMOPP isolation, and complies with EN55011 Class B for conducted and radiated emissions.
The adapter operates over a 0°C to 40°C temperature range and 20% to 80% non-condensing humidity. It measures 204.0mm x 94.0mm x 43.5mm and carries a 2-year warranty. With a high MTBF of 300,000 hours at 25°C per Telcordia SR-332, it is designed for reliable long-term operation in medical and industrial equipment.
The output voltage is 24Vdc and the output current is 10.4A, providing 250W of power.
It accepts a universal input of 90 to 264 Vac, with a nominal range of 100 to 240 Vac.
It is approved to ANSI/AAMI ES60601-1:2012 edition 3.1 and IEC/EN ES60601-1:2012 edition 3.1 with 2xMOPP isolation.
The operating temperature range is 0°C to 40°C.
It uses an IEC 60320 C14 or C18 input connector.
