| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Height | |
| Input Connector | |
| Input Frequency | |
| Input Type | |
| Input Voltage | |
| Length | |
| Medical Grade | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Power (Watts) | |
| Region Utilized | |
| Standard Number | |
| Voltage | |
| Width |

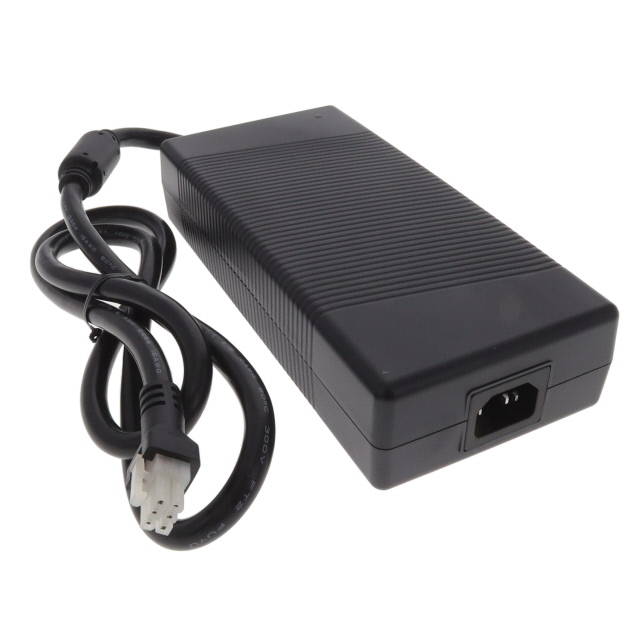

The Tri-Mag, LLC L6R250DM-150-C14 is a 250W AC/DC desktop power supply specifically designed for medical applications. It features a universal input voltage range of 90-264 Vac and operates at frequencies between 47-63 Hz.
This power supply delivers a stable 15Vdc output with a current rating of 16.66A. It boasts a Level VI efficiency rating, ensuring optimal power usage. Key electrical specifications include a line regulation of ±1% and a load regulation of ±5%. The ripple and noise are kept to a maximum of 2% Vp-p.
Designed for reliability, the L6R250DM-150-C14 has an MTBF of 300,000 hours at 25°C. It operates within a temperature range of 0°C to 40°C. The unit features an IEC 60320 C14 input connector and a rectangular 6-position output connector. Its dimensions are 204.0mm x 94.0mm x 43.5mm, making it a compact desktop solution.
The output voltage is 15Vdc.
The maximum output current is 16.66A.
The power rating is 250W.
The input voltage range is 90 to 264 Vac.
It has a Level VI efficiency rating.
The operating temperature range is 0°C to 40°C.
It uses an IEC 320-C14 input connector.
