| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Height | |
| Input Connector | |
| Input Frequency | |
| Input Type | |
| Input Voltage | |
| Length | |
| Medical Grade | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Overload Protection | |
| Power (Watts) | |
| Region Utilized | |
| SVHC Present | |
| Standard Number | |
| Storage Temperature | |
| Voltage | |
| Width |

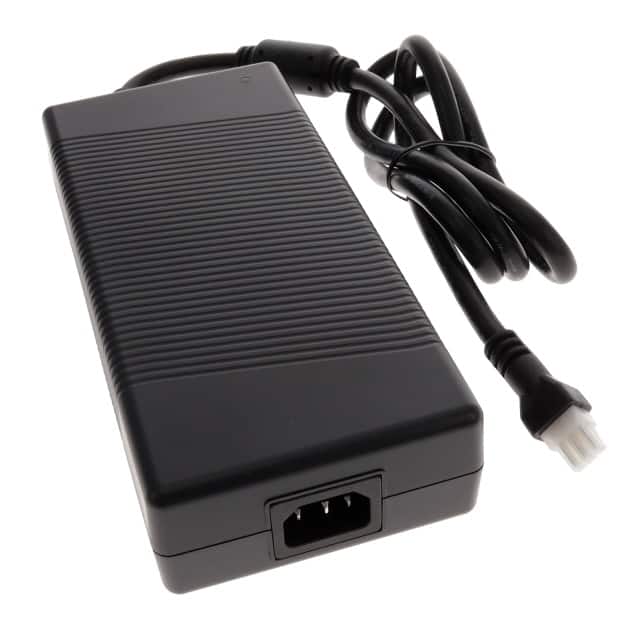

The Tri-Mag, LLC L6R250DM-120-C14 is a high-performance 250W AC/DC desktop power supply specifically designed for medical applications. It provides a stable 12Vdc output at up to 20A, ensuring reliable power delivery for critical equipment.
This power supply boasts a universal input voltage range of 90-264Vac and operates at frequencies from 47-63Hz, making it suitable for international use. It meets DOE Level VI efficiency requirements, contributing to energy savings and reduced heat generation. The unit is approved to ANSI/AAMI/IEC/EN ES60601-1 standards, ensuring safety and compliance for medical environments.
Key features include a compact and lightweight design, an IEC 60320 C14 AC input connector, and a rectangular 6-position output connector. It offers auto-recovery for overvoltage, overload, and short circuit protection. The operating temperature range is 0°C to 40°C, with a 2-year warranty.
With its robust design and medical-grade approvals, the L6R250DM-120-C14 is an ideal choice for powering medical devices and other sensitive electronic equipment requiring a dependable and compliant power solution.
The input voltage range is 90 to 264 Vac with a nominal range of 100-240 Vac.
The operating temperature is 0°C to 40°C.
Desktop (Class I) form factor with an IEC 60320 C14 input connector.
Output voltage is +12.0V DC at up to 20.0A (250W).
Overvoltage, overload, and short circuit protections, all with auto-recovery.
204.0mm (length) x 94.0mm (width) x 43.5mm (height).
