| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Duration | |
| Efficiency | |
| Failure Rate | |
| Form | |
| Height | |
| Input Connector | |
| Input Type | |
| Input Voltage | |
| Length | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Output Current | |
| Output Voltage | |
| Power (Watts) | |
| Region Utilized | |
| Standard Number | |
| Voltage | |
| Weight | |
| Width |

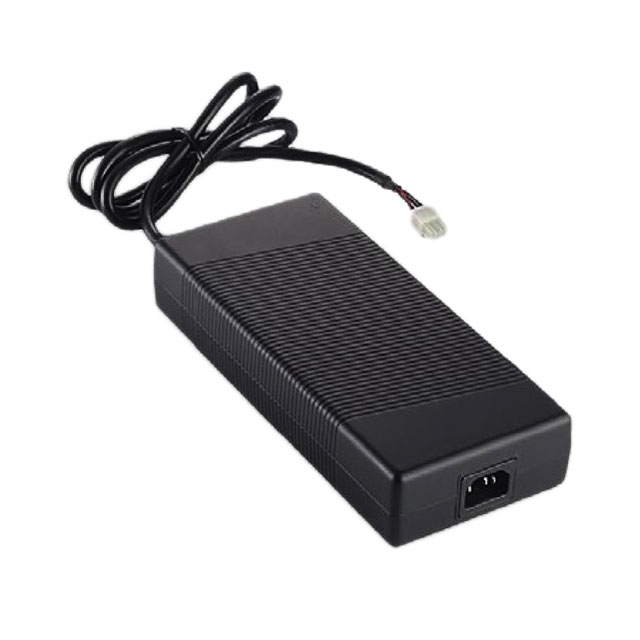

This AC/DC desktop adapter from Tri-Mag, LLC, part number L6R250D-120-C6, delivers 240 watts of power with a 12V output and a maximum current of 20A. It meets Level VI efficiency standards and CoC Tier 2 requirements, ensuring energy efficiency.
The adapter operates within a universal input voltage range of 90 to 264 VAC and features an IEC 320-C6 input connector. The output is provided via a Rectangular, 6 Position connector. Its dimensions are 204.0mm x 94.0mm x 43.6mm, and it weighs 1 kg.
Designed for ITE (Commercial) applications, this adapter operates reliably in temperatures from 0°C to 40°C. It complies with standard number 62368-1 and carries approvals from CE, cULus, EN, FCC, and TUV. The input type is a cord, sold separately, with a cord length of 1.20m.
The output voltage is 12V and the maximum output current is 20A.
The input voltage range is 90 to 264 VAC.
It meets Level VI and CoC Tier 2 efficiency standards.
The operating temperature range is 0°C to 40°C.
It uses an IEC 320-C6 input connector.
It is a Desktop (Class I) adapter.
The maximum no-load power consumption is 150mW.
