| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Height | |
| Input Connector | |
| Input Type | |
| Input Voltage | |
| Length | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Polarization | |
| Power (Watts) | |
| Region Utilized | |
| SVHC Present | |
| Standard Number | |
| Tape & Reel | |
| Voltage | |
| Width |

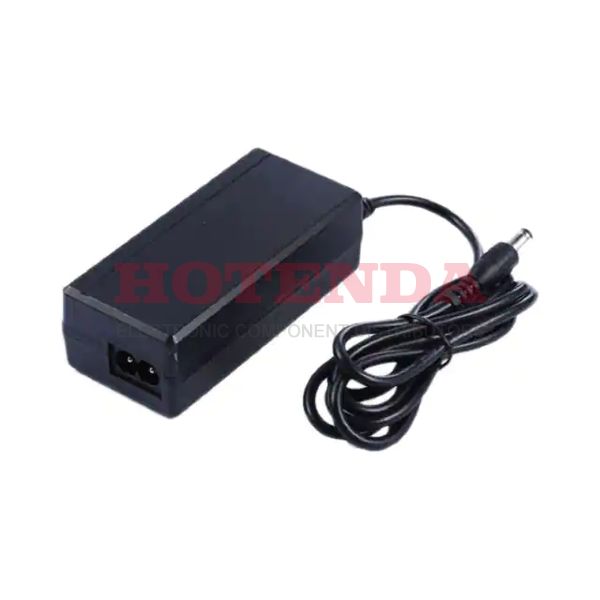

The Tri-Mag, LLC L6R24D-090-C8 is an AC/DC desktop power adapter designed for commercial ITE applications. It provides a stable 9V output with a maximum power of 24W and a current rating of 2.7A.
This adapter meets Level VI efficiency standards and operates within a temperature range of 0°C to 40°C. It features an IEC 320-C8 input connector and a 2.1mm I.D. x 5.5mm O.D. barrel plug output connector with a positive center polarization. The unit has dimensions of 91.9mm x 45.4mm x 27.5mm and includes a 1.50m cord.
Compliance is certified by cUL, FCC, and UL. The adapter is designed as a Class II desktop unit, ensuring safety and reliability for various electronic devices. It has a low no-load power consumption of 100mW max.
The L6R24D-090-C8 adapter has an output voltage of 9V and a power rating of 24W.
The input voltage for this adapter is 240V.
The adapter meets Level VI efficiency standards.
The operating temperature range is 0°C to 40°C.
It uses a barrel plug with a 2.1mm inner diameter and a 5.5mm outer diameter, with positive center polarization.
The adapter is approved by cUL, FCC, and UL.
