| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Input Connector | |
| Input Frequency | |
| Input Type | |
| Input Voltage | |
| Medical Grade | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Overload Protection | |
| Power (Watts) | |
| Region Utilized | |
| SVHC Present | |
| Standard Number | |
| Storage Temperature | |
| Voltage |

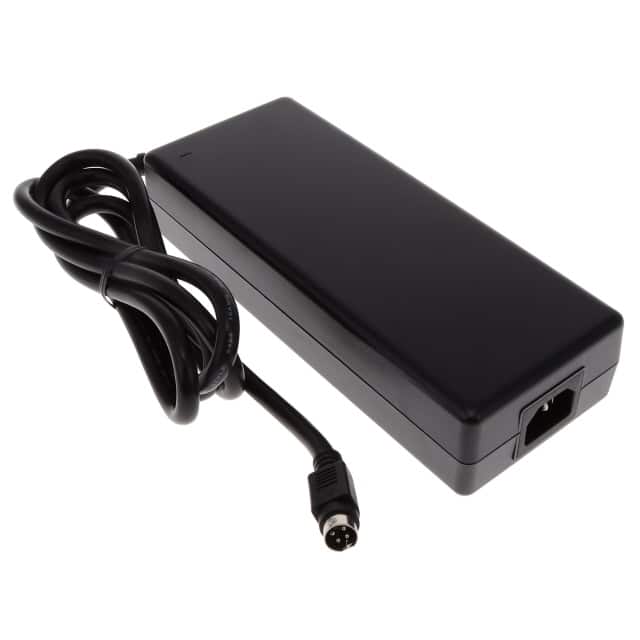

The Tri-Mag L6R200DM-480-C14 is a 200W AC/DC desktop power supply designed for medical applications. It features a universal input voltage range of 90-264Vac and a stable 48Vdc output current of 4.17A.
This power supply meets DOE Level VI efficiency requirements, ensuring optimal energy usage. It includes an IEC 60320 C14 input connector and a 4-pin Power DIN output connector. The unit is designed for desktop use and is approved by agencies including CE, cULus, EN, FCC, and TUV, adhering to standards like IEC/EN ES60601-1.
Key electrical specifications include a line regulation of ±1% and load regulation of ±5% typical. It offers overvoltage, overload, and short circuit protection with auto-recovery. The operating temperature range is 0°C to 40°C, and it boasts an MTBF of 300,000 hours at 25°C.
The L6R200DM-480-C14 has an output voltage of 48V and an output current of 4.17A.
The input voltage range is 90 to 264 Vac.
It meets the DOE Level VI efficiency rating.
It uses an IEC 60320 C14 input connector.
The operating temperature range is 0°C to 40°C.
