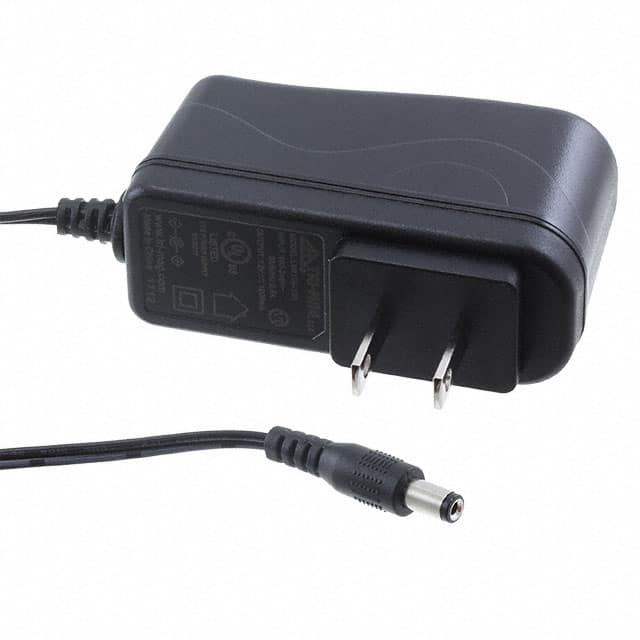

L6R12H-050 The Tri-Mag, LLC L6R12H-050 is a 10W AC/DC wall mount adapter with a 5V output and 2A current. It features universal input and DOE Level VI efficiency.
Mfr Part #:

L6R12H-050

Mfr Name: Tri-Mag, LLC
Tri-Mag, LLC
The Tri-Mag, LLC L6R12H-050 is a 10W AC/DC wall mount adapter with a 5V output and 2A current. It features universal input and DOE Level VI efficiency.
Stock on Request

L6R12H-050 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Applications
Approval Agency
Cord Length
Current
Efficiency
Form
Input Connector
Input Frequency
Input Type
Input Voltage
Insulation Resistance
No Load Power Consumption
Operating Temperature
Output Connector
Polarization
Power (Watts)
Region Utilized
SVHC Present
Standard Number
Storage Temperature
Voltage

L6R12H-050 Description

Short technical summary and product information.

The Tri-Mag, LLC L6R12H-050 is a versatile 10W AC/DC wall mount adapter designed for ITE (Commercial) applications. It provides a stable 5Vdc output at up to 2A current, with a power rating of 10W. The adapter boasts a universal input voltage range of 90-264Vac and operates at frequencies between 47-63Hz, making it suitable for global use.



This unit meets DOE Level VI efficiency standards, ensuring energy savings and reduced heat generation. Key electrical specifications include line regulation of ±1% and load regulation of ±5%, with a maximum ripple and noise of 100mVp-p. The adapter features auto-recovery for overvoltage, overload, and short circuit protection.



Designed for convenience, it has a compact, lightweight, wall-mount form factor with a NEMA 1-15P input connector and a 5.5mm x 2.1mm x 9.5mm corded output plug with a positive center. The operating temperature range is from 10°C to 40°C. Safety approvals include UL and cUL 62368-1, with FCC compliance for EMC.



This adapter is suitable for various electronic devices requiring a reliable and efficient power source. Its robust design and compliance with safety standards make it a dependable choice for commercial and industrial applications.

L6R12H-050 Quick Information

Product Type: AC/DC Desktop, Wall Adapter
Series: L6R12H
Canonical Name: Tri-Mag, LLC L6R12H Series 5V 2A 10W AC/DC Wall Mount Adapter
Subcategory: Wall Mount Adapter

L6R12H-050 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

L6R12H-050 Features

  • 10W AC/DC wall mount adapter
  • 5V output at 2A current
  • Universal input 90-264Vac
  • DOE Level VI efficiency rating
  • UL/cUL 62368-1 safety approved

L6R12H-050 Applications

  • Ideal for IoT devices and sensors.
  • Used in medical and industrial equipment.
  • Suitable for consumer electronics.
  • Powers low-voltage LED lighting.

L6R12H-050 FAQs

6 frequently asked questions generated from this part’s specifications.
What is the output voltage and current for the L6R12H-050?

The L6R12H-050 provides a 5Vdc output at 2.00A.

What is the power rating of the L6R12H-050 adapter?

This adapter has a power rating of 10W.

Does the L6R12H-050 meet energy efficiency standards?

Yes, it meets DOE Level VI efficiency standards.

What is the input voltage range for this power supply?

The input voltage range is 90 to 264 Vac.

What are the operating temperature limits for the L6R12H-050?

The operating temperature range is 10°C to 40°C.

What type of output connector does the L6R12H-050 use?

It uses a corded output connection with a 5.5mm x 2.1mm x 9.5mm barrel plug.
