| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Height | |
| Input Connector | |
| Input Frequency | |
| Input Type | |
| Input Voltage | |
| Length | |
| Medical Grade | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Overload Protection | |
| Polarization | |
| Power (Watts) | |
| Region Utilized | |
| Standard Number | |
| Storage Temperature | |
| Tape & Reel | |
| Voltage | |
| Width |

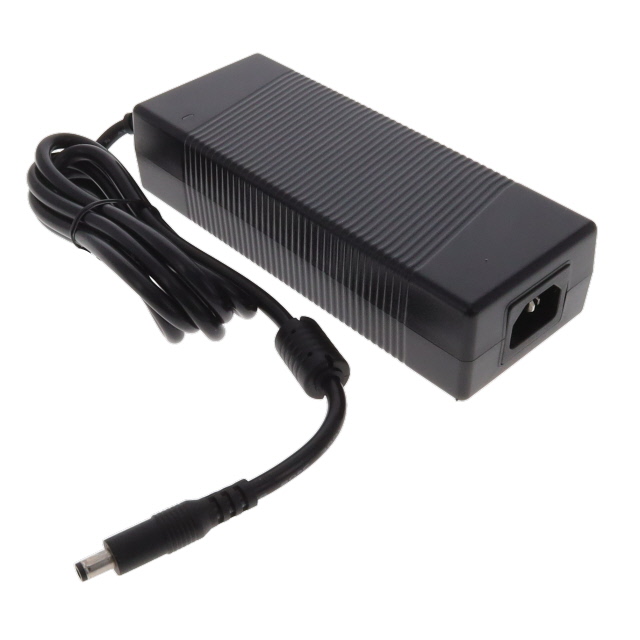

The Tri-Mag, LLC L6R120DM-190-C14 is a 120W AC/DC desktop adapter designed for medical applications. It features a universal input voltage range of 90-264 VAC and provides a stable 19V output at a maximum current of 6.3A.
This adapter complies with DOE Level VI efficiency standards, ensuring energy savings and reduced heat generation. It is approved by agencies including CE, cULus, EN, FCC, and TUV, and meets the stringent requirements of Standard 60601-1, making it suitable for critical medical equipment.
The unit has a compact desktop form factor (Class I) with dimensions of 165.0mm x 66.0mm x 39.0mm. It utilizes an IEC 320-C14 input connector and a 2.5mm I.D. x 5.5mm O.D. x 9.5mm barrel plug for output. The cord length is 1.50m, and it features a positive center polarization.
Key electrical specifications include a wide operating temperature range of 0°C to 40°C, auto-recovery for overvoltage, overload, and short circuit protection, and an MTBF of 300,000 hours at 25°C. The no-load power consumption is a maximum of 150mW.
The L6R120DM-190-C14 has an output voltage of 19V and a maximum output current of 6.3A.
The power rating for this adapter is 120W.
The input voltage range is 90 to 264 VAC.
Yes, it meets the DOE Level VI efficiency rating.
Approval agencies include CE, cULus, EN, FCC, and TUV.
The operating temperature range is 0°C to 40°C.
It uses a Barrel Plug with dimensions 2.5mm I.D. x 5.5mm O.D. x 9.5mm.
