| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Height | |
| Input Connector | |
| Input Frequency | |
| Input Type | |
| Input Voltage | |
| Length | |
| Medical Grade | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Overload Protection | |
| Polarization | |
| Power (Watts) | |
| Region Utilized | |
| SVHC Present | |
| Standard Number | |
| Storage Temperature | |
| Voltage | |
| Width |

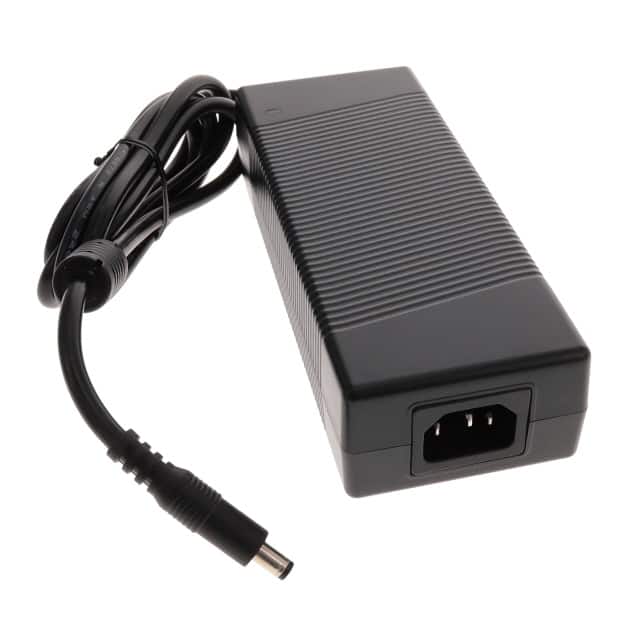

The Tri-Mag, LLC L6R120DM-180-C14 is a versatile 120W AC/DC desktop power supply suitable for medical applications. It features a universal input voltage range of 90 to 264Vac and operates at frequencies from 47 to 63 Hz.
This power supply delivers a stable 18V output current of 6.67A. It meets DOE Level VI efficiency standards and is approved to ANSI/AAMI/IEC/EN ES60601-1:2012, providing 2xMOPP means of protection. The unit includes overvoltage, overload, and short circuit protection with auto-recovery.
Designed for ease of use, it has an IEC 320-C14 input connector and a barrel plug output connector (2.5mm I.D. x 5.5mm O.D. x 9.5mm). The compact dimensions are 165.0mm x 66.0mm x 39.0mm. It operates within a temperature range of 0°C to 40°C and has a high MTBF of 300,000 hours at 25°C.
90 to 264 Vac (47-63 Hz).
18 Vdc at 6.67 A.
120 W.
Level VI.
0°C to 40°C.
CE, cULus, EN, FCC, TUV; compliant with ANSI/AAMI/IEC/EN ES60601-1:2012 and 2xMOPP.
Overvoltage, overload, and short circuit protection, all with auto recovery.
