| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Height | |
| Input Connector | |
| Input Frequency | |
| Input Type | |
| Input Voltage | |
| Length | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Polarization | |
| Power (Watts) | |
| Region Utilized | |
| Standard Number | |
| Voltage | |
| Width |

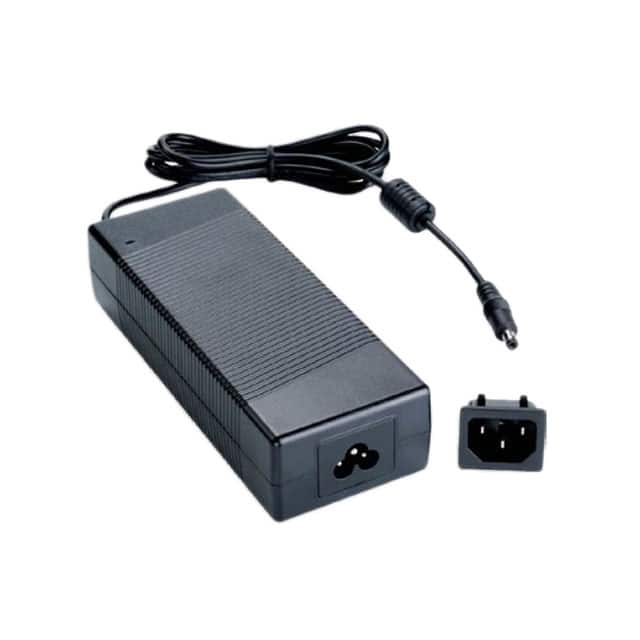

The Tri-Mag, LLC L6R120D-240 is a 120W AC/DC desktop power supply designed for ITE (Information Technology Equipment) applications. It features a universal input voltage range of 90 to 264 Vac and operates at frequencies of 47 to 63 Hz.
This power supply delivers a stable 24V output at 5A, providing a total of 120W of power. It meets stringent efficiency requirements, complying with DOE Level VI and CoC Tier 2 standards. The unit is approved by CE, cULus, EN, FCC, and TUV, ensuring safety and reliability.
Designed for ease of use, it includes an IEC 320-C14 input connector and a standard barrel plug output connector (2.5mm I.D. x 5.5mm O.D. x 9.5mm) with a positive center polarization. The compact desktop form factor measures 168.0mm x 66.0mm x 39.0mm. It operates within a temperature range of 0°C to 40°C and boasts a Mean Time Between Failures (MTBF) of 300,000 hours at 25°C.
The output voltage is 24 Vdc.
The maximum output current is 5 A.
The input voltage range is 90 to 264 Vac.
It meets DOE Level VI and CoC Tier 2 efficiency ratings.
It uses an IEC 320-C14 input connector.
The dimensions are 168.0mm x 66.0mm x 39.0mm.
The operating temperature range is 0°C to 40°C.
