| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Height | |
| Input Connector | |
| Input Frequency | |
| Input Type | |
| Input Voltage | |
| Length | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Output Current | |
| Polarization | |
| Power (Watts) | |
| Region Utilized | |
| Standard Number | |
| Voltage | |
| Width |

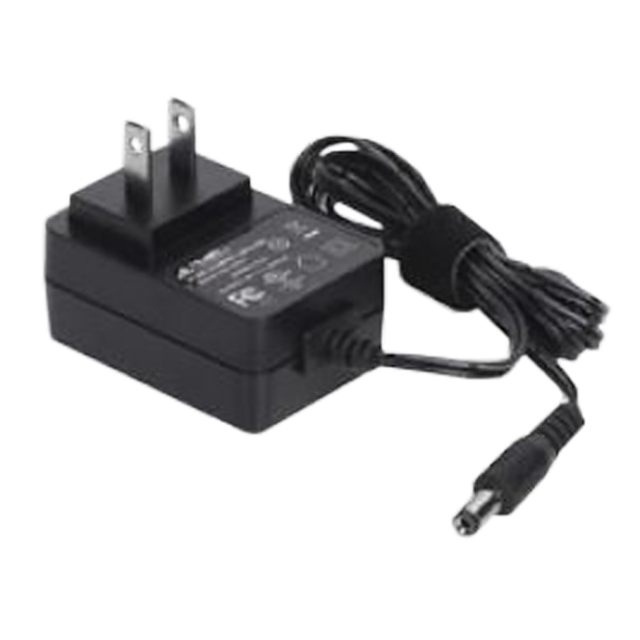

The Tri-Mag, LLC L6R12-180 is an AC/DC wall mount power supply designed for ITE (Commercial) applications. It delivers a stable 18V DC output with a maximum current of 670mA, providing a total power of 13W. This adapter operates with a universal input voltage range of 90 to 264 VAC at 47/63 Hz, making it suitable for global use.
The L6R12-180 meets DOE Level VI efficiency standards, ensuring reduced energy consumption. It features a compact, lightweight design with a fixed blade input connector (NEMA 1-15P) and a standard 2.1mm I.D. x 5.5mm O.D. barrel plug output connector. The adapter is approved by UL, cUL, and FCC, adhering to the UL/cUL 62368-1 safety standard.
Key specifications include a line regulation of ±1% and load regulation of ±5%. The operating temperature range is from 0°C to 40°C. The unit is designed as a Class II device, requiring no earth ground connection. Its dimensions are 58.9mm x 40.9mm x 31.5mm.
90 VAC to 264 VAC at 47 Hz to 63 Hz.
18 VDC at 670 mA, with rated output power of 13 W.
Wall mount (Class II) package.
0°C to 40°C.
Line regulation is ±1% maximum and load regulation is ±5% maximum.
100 mVp-p maximum.
Level VI efficiency with maximum no-load input power below 0.1 W.
