| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Height | |
| Industrial Grade | |
| Input Connector | |
| Input Type | |
| Insulation Resistance | |
| Medical Grade | |
| Military Grade | |
| Mounting Type | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Output Current | |
| Polarization | |
| Power (Watts) | |
| Region Utilized | |
| Standard Number | |
| Storage Temperature | |
| Voltage | |
| Width |

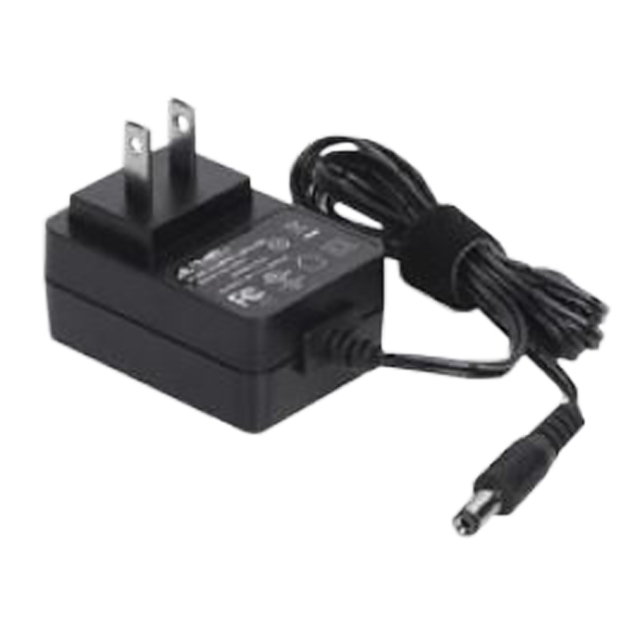

The Tri-Mag, LLC L6R12-070 is a versatile AC/DC wall mount power supply designed for ITE applications. It operates with a universal input voltage range of 90-264Vac and a frequency of 47-63Hz, making it suitable for global use.
This power supply delivers a stable 7V output at 1.33A, providing a total power of 9.1W. It meets DOE Level VI efficiency standards, ensuring energy savings and reduced heat generation. Key electrical specifications include line regulation of ±1% and load regulation of ±5%, with a maximum ripple and noise of 100mVp-p.
The unit features a compact and lightweight design, with dimensions of 58.9mm x 40.9mm x 31.5mm. It includes a standard NEMA 1-15P input connector and a 2.1mm I.D. x 5.5mm O.D. x 9.5mm barrel plug output connector with a positive center polarization. The cord length is 59 inches (1.50m).
Safety and compliance are addressed with UL/cUL 62368-1 approvals and FCC compliance. The operating temperature range is 0°C to 40°C, and it has a low no-load power consumption of less than 100mW. The L6R12-070 is built for reliability with an MTBF of 50,000 hours.
Input: 90-264VAC; Output: 7VDC.
0°C to 40°C.
Wall mount, Class II, with NEMA 1-15P input and 2.1mm I.D. x 5.5mm O.D. barrel plug output.
1.33A.
Level VI compliant, typical efficiency 80%.
58.9mm x 40.9mm x 31.5mm (LxWxH).
Maximum 100mW.
