| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Height | |
| Input Connector | |
| Input Frequency | |
| Input Type | |
| Input Voltage | |
| Length | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Output Current | |
| Polarization | |
| Power (Watts) | |
| Region Utilized | |
| Standard Number | |
| Storage Temperature | |
| Voltage | |
| Weight | |
| Width |

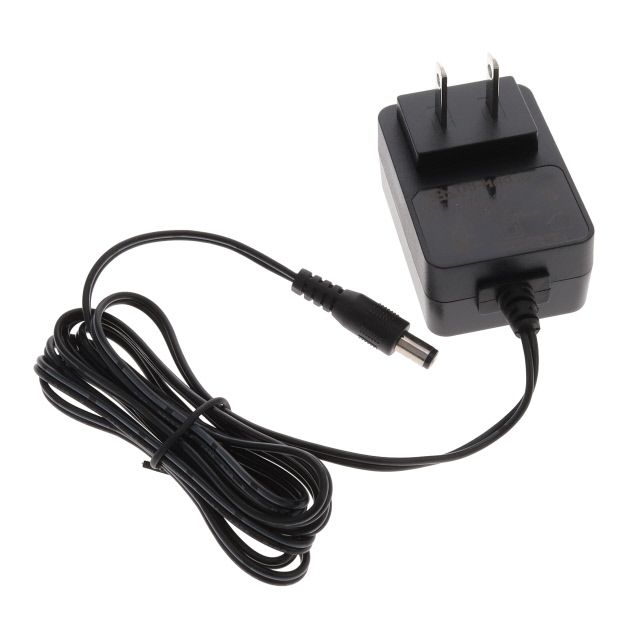

The Tri-Mag, LLC L6R12-059 is a versatile 12W AC/DC wall mount power supply designed for ITE applications. It offers a stable 5.9Vdc output with a current rating of 1.50A, ensuring reliable power delivery.
This power supply operates with a universal input voltage range of 90 to 264Vac at 47 to 63Hz, making it suitable for global use. It boasts a DOE Level VI efficiency rating, minimizing energy consumption and heat generation. The unit is compliant with UL/cUL 62368-1 safety standards and features a compact, lightweight design with a Class II construction.
Key specifications include ±1% line regulation and ±5% load regulation, with a maximum ripple and noise of 100mVp-p. The operating temperature range is from 0°C to 40°C. The L6R12-059 comes with a standard NEMA 1-15P input connector and a 2.1mm I.D. x 5.5mm O.D. x 9.5mm barrel plug output connector, with a cord length of 59 inches (1.50m). It is RoHS3 compliant and has an MSL rating of 1.
The L6R12-059 power supply has an output voltage of 5.9Vdc.
The maximum output current for the L6R12-059 is 1.50A.
The L6R12-059 has a power rating of 12W.
The L6R12-059 accepts a universal input voltage range of 90 to 264Vac.
Yes, the L6R12-059 meets the DOE Level VI efficiency rating.
The L6R12-059 operates within a temperature range of 0°C to 40°C.
The L6R12-059 is safety approved to UL/cUL 62368-1 standards.
