| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Form | |
| Input Connector | |
| Input Frequency | |
| Input Type | |
| Input Voltage | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Power (Watts) | |
| Region Utilized | |
| Standard Number | |
| Voltage |

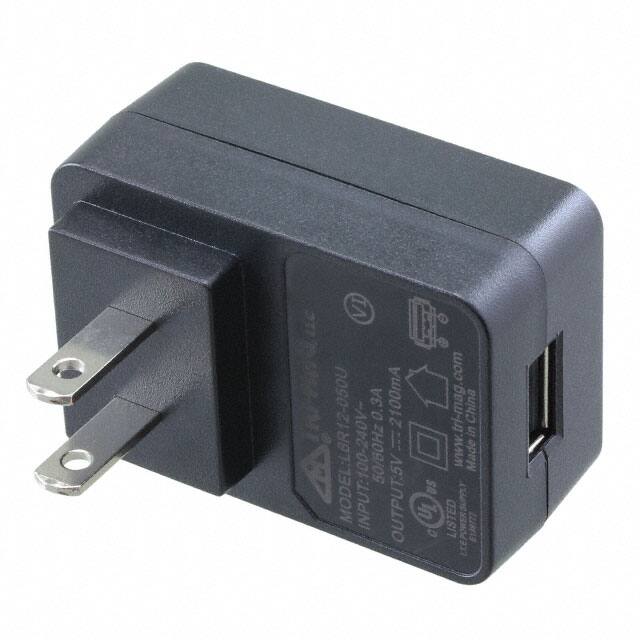

The Tri-Mag, LLC L6R12-050U is a compact and lightweight 11W AC/DC wall mount power adapter designed for ITE applications. It offers a universal input voltage range of 90-264Vac and operates at frequencies of 47-63Hz, making it suitable for global use. The adapter provides a stable 5Vdc output with a current rating of 2.1A.
This power supply meets DOE Level VI efficiency standards, ensuring energy savings. It is safety approved to UL/cUL 62368-1 and EMC approved by FCC. The unit features a NEMA 1-15P input connector and a USB A receptacle for output connection. Its dimensions are 59.0mm x 40.9mm x 25.4mm, and it is designed as a Class II wall mount unit.
Key specifications include a line regulation of ±1% and a load regulation of ±5%. The ripple and noise are a maximum of 100mVp-p. The operating temperature range is 0°C to 40°C. The L6R12-050U is RoHS3 compliant and has an MSL rating of 1.
90-264 Vac.
5 Vdc at 2.1 A.
11 W.
Level VI.
0°C to 40°C.
Wall mount (Class II).
50,000 hours (MIL-HDBK-217F at +25°C).
