| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Height | |
| Input Connector | |
| Input Type | |
| Length | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Polarization | |
| Power (Watts) | |
| Region Utilized | |
| SVHC Present | |
| Standard Number | |
| Voltage | |
| Width |

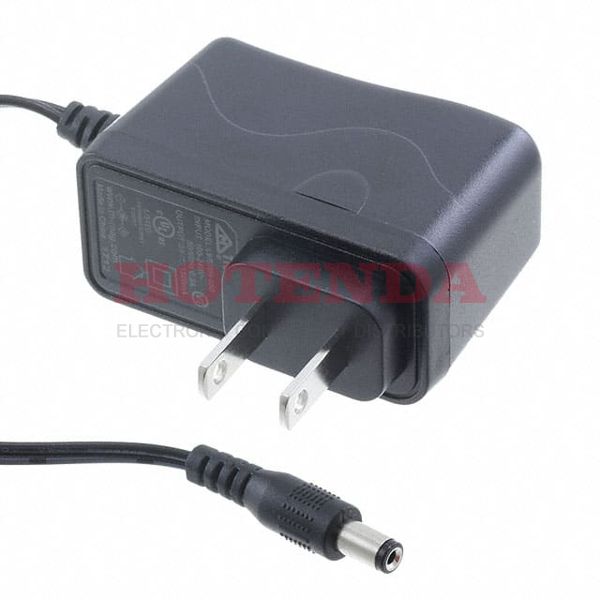

The Tri-Mag, LLC L6R09H-120 is a compact AC/DC wall mount adapter designed for ITE (Commercial) applications. It delivers a stable 12V output at 9W maximum power, with a current rating of 750mA.
This adapter features a NEMA 1-15P input connector and a standard barrel plug output (2.1mm I.D. x 5.5mm O.D. x 9.5mm) with positive center polarization. It operates efficiently, meeting Level VI energy efficiency standards and consuming a maximum of 100mW at no load.
The unit is designed for wall mounting (Class II) and operates within a temperature range of 10°C to 40°C. Its dimensions are 56.9mm in length, 25.9mm in width, and 45.0mm in height. The integrated cord is 59 inches (1.50m) long.
Compliance is indicated by cUL, FCC, and UL approval agencies, and it adheres to the 60950-1 standard. The RoHS status is RoHS3 Compliant, Moisture Sensitivity Level is 1, and REACH status is Unaffected.
The output voltage is 12V DC.
It provides 750mA (0.75A) output current.
The maximum output power is 9W.
The operating temperature range is 10°C to 40°C.
It uses a fixed-blade NEMA 1-15P input plug.
It uses a 2.1mm I.D. x 5.5mm O.D. x 9.5mm barrel plug with positive center polarity.
It is Level VI efficiency with a maximum no-load power consumption of 100mW.
