| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Form | |
| Height | |
| Input Connector | |
| Input Type | |
| Input Voltage | |
| Length | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Power (Watts) | |
| Region Utilized | |
| SVHC Present | |
| Standard Number | |
| Voltage | |
| Width |

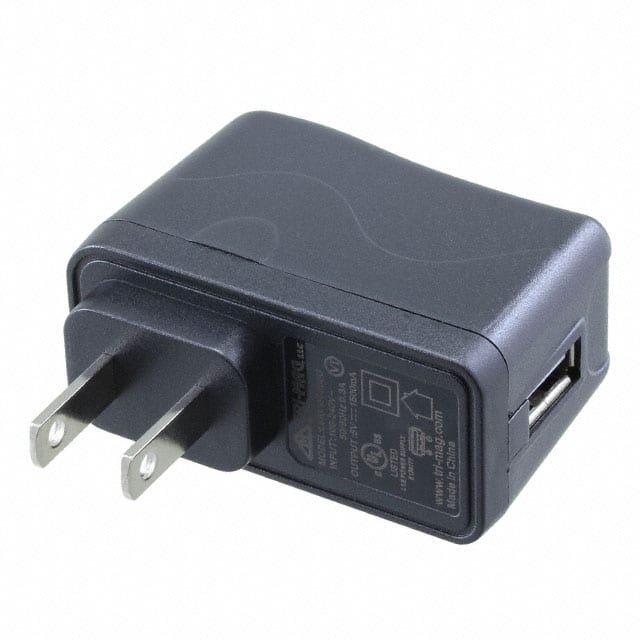

This Tri-Mag, LLC L6R09H-050U is an AC/DC wall mount adapter designed for ITE (Commercial) applications. It delivers a stable 5V output at up to 1.8A, providing a total power of 9W. The adapter complies with the Level VI efficiency standard, ensuring energy savings and reduced heat generation.
Featuring a NEMA 1-15P input connector and a USB A receptacle output, this adapter is suitable for various electronic devices. Its compact dimensions (56.9mm x 25.9mm x 45.0mm) make it convenient for portable use. The operating temperature range is from 10°C to 40°C, and it has a low no-load power consumption of 100mW maximum.
This unit is approved by cUL, FCC, and UL, and adheres to the 60950-1 standard. It is RoHS3 compliant and has an MSL of 1.
The adapter provides a 5V output at 1.8A.
The adapter has a power rating of 9W.
This adapter meets Level VI efficiency standards.
The adapter measures 56.9mm in length, 25.9mm in width, and 45.0mm in height.
The adapter operates within a temperature range of 10°C to 40°C.
It features a NEMA 1-15P input connector and a USB A receptacle output.
Yes, the adapter is RoHS3 Compliant.
