| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Input Connector | |
| Input Frequency | |
| Input Type | |
| Input Voltage | |
| Insulation Resistance | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Overload Protection | |
| Polarization | |
| Power (Watts) | |
| Region Utilized | |
| Standard Number | |
| Storage Temperature | |
| Voltage |

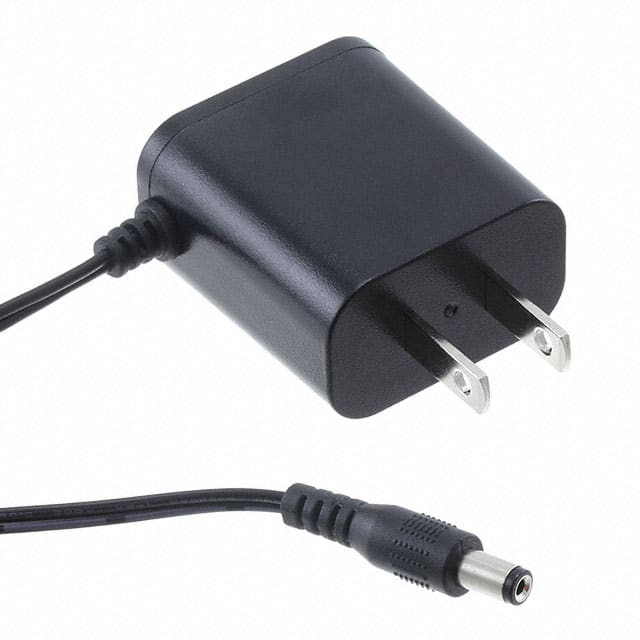

The Tri-Mag, LLC L6R06H-050 is a versatile 6W AC/DC wall mount power supply designed for ITE (Commercial) applications. It offers a stable 5Vdc output with a maximum current of 1.2A, suitable for various electronic devices.
This adapter boasts a universal input voltage range of 90-264Vac and operates at frequencies between 47-63Hz, making it suitable for global use. It meets the stringent DOE Level VI efficiency rating, ensuring reduced energy consumption. The unit is safety approved to UL/cUL 62368-1 standards and features a compact, lightweight design.
Key electrical specifications include ±1% line regulation and ±5% load regulation, with a maximum ripple and noise of 100mVp-p. It incorporates auto-recovery for overvoltage, overload, and short circuit protection. The physical dimensions are 42.0mm x 39.2mm x 23.7mm, with a cord length of 1.50m and a standard barrel plug output (2.1mm I.D. x 5.5mm O.D.).
Environmental considerations include an operating temperature range of 10°C to 40°C and a low no-load power consumption of less than 0.1W. The RoHS 3 status is compliant, and it is rated MSL 1.
The L6R06H-050 provides a 5Vdc output voltage with a maximum current of 1.2A.
The power rating for this adapter is 6W.
The adapter supports a universal input voltage range of 90 to 264 Vac.
Yes, it meets the DOE Level VI efficiency rating.
It is safety approved to UL/cUL 62368-1 standards.
The dimensions are 42.0mm in height, 39.2mm in length, and 23.7mm in width.
The operating temperature range is from 10°C to 40°C.
