L6986TR The STMicroelectronics L6986TR is an adjustable, positive output DC-DC switching regulator. It features a 2A output current and operates with a 4V input voltage.
Mfr Part #:

L6986TR

Available from 2 distributors
Mfr Name: STMicroelectronics
STMicroelectronics
The STMicroelectronics L6986TR is an adjustable, positive output DC-DC switching regulator. It features a 2A output current and operates with a 4V input voltage.
✓ Total Stock: 118,360 pcs
$ Price Range: $0.16

L6986TR Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Fe Components ✓
Non-Authorised Inventory information
117,500 pcs
On Request
117500 pcs On Request 1 On Request On Request On Request On Request On Request
Chanetech ✓
Non-Authorised Inventory information
860 pcs
On Request
860 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

L6986TR Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Current
Frequency
Function
Mounting Type
Number of Outputs
Operating Temperature
Output Configuration
Output Type
SVHC Present
Supplier Device Package
Supplier Package
Synchronous Rectifier
Topology
Voltage
View Similar Products (0)

L6986TR Description

Short technical summary and product information.

The STMicroelectronics L6986TR is a versatile DC-DC switching regulator designed for step-down applications. This device functions as a buck converter, providing a positive, adjustable output voltage.



Key electrical specifications include an output current capability of 2A and an input voltage range starting at 4V. The switching frequency can be adjusted between 250kHz and 2MHz, allowing for flexibility in design. It operates within a wide temperature range of -40°C to 150°C (TJ).

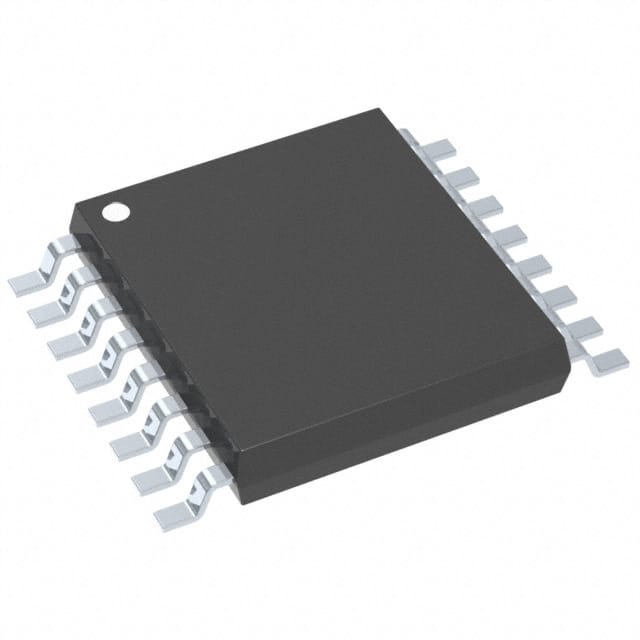

The L6986TR is housed in a 16-HTSSOP package, suitable for surface mount applications. Its synchronous rectifier design enhances efficiency. The component is compliant with RoHS3 standards and has a Moisture Sensitivity Level (MSL) of 1.



This regulator is suitable for various power management applications where efficient voltage conversion is required. Its adjustable output and wide operating temperature make it a flexible choice for embedded systems and power supplies.

L6986TR Quick Information

Product Type: DC DC Switching Regulator
Canonical Name: L6986TR
Subcategory: DC-DC Switching Regulator

L6986TR Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

L6986TR Estimated Pricing

Qty Low High
1+ $0.16 $0.16

Estimated market price range - modelled values for guidance only, not live distributor offers.

L6986TR Features

  • Adjustable positive output voltage.
  • 2A output current capability.
  • Wide 250kHz to 2MHz frequency range.
  • Surface mount 16-HTSSOP package.
  • Operates from -40°C to 150°C.

L6986TR Applications

  • Efficient step-down voltage conversion.
  • Power supplies for embedded systems.
  • Point-of-load power management.
  • Battery-powered device applications.

L6986TR FAQs

7 frequently asked questions generated from this part’s specifications.
What is the operating temperature range of the L6986TR?

-40°C to 150°C (junction).

What package is the L6986TR available in?

16-PowerTSSOP (0.173", 4.40mm Width) or 16-HTSSOP, surface mount.

What is the output current of the L6986TR?

2A.

What is the switching frequency range of the L6986TR?

250kHz to 2MHz.

Does the L6986TR have synchronous rectification?

Yes.

Is the output voltage of the L6986TR adjustable?

Yes, it is adjustable.

How many outputs does the L6986TR have?

1 output.
