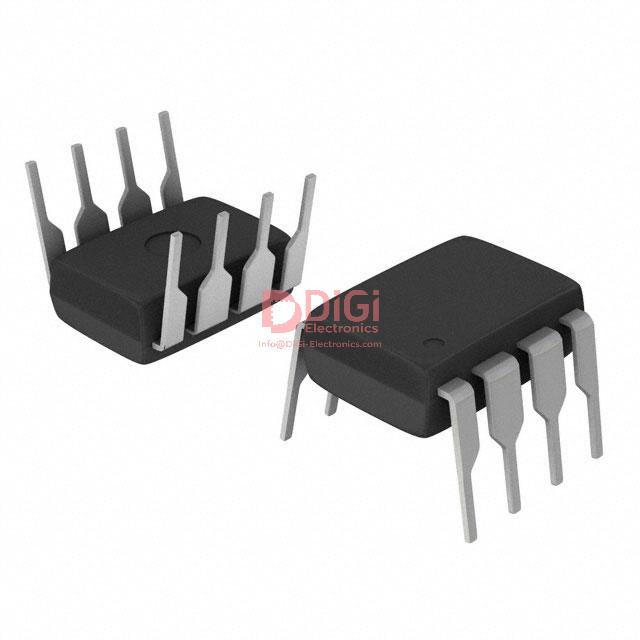

L6562N The STMicroelectronics L6562N is a Power Management IC designed for PFC (Power Factor Correction) applications. It operates at a switching frequency of 1MHz.
Mfr Part #:

L6562N

Available from 1 distributors
Mfr Name: NA
NA
The STMicroelectronics L6562N is a Power Management IC designed for PFC (Power Factor Correction) applications. It operates at a switching frequency of 1MHz.
✓ Total Stock: 14 pcs

L6562N Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
PROSOFT ELECTRONICS ✓
Non-Authorised Inventory information
14 pcs
On Request
14 pcs On Request 1 On Request On Request 06+ On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

L6562N Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Halogen Free
Mode
Mounting Type
Operating Temperature
Package / Case
SVHC Present
Supplier Device Package
Voltage Supply
View Similar Products (0)

L6562N Description

Short technical summary and product information.

The STMicroelectronics L6562N is a Power Management IC (PMIC) specifically designed for Power Factor Correction (PFC) applications. This component operates in discontinuous or transition mode and features a switching frequency of 1MHz.



Key electrical characteristics include a startup current of 40 µA and a wide supply voltage range of 10.3V to 22V. The device is designed for through-hole mounting and comes in an 8-DIP package.



This PFC controller is suitable for various power supply designs where efficient power factor correction is required. Its operating temperature range is -25°C to 125°C, making it adaptable to different environmental conditions.

L6562N Quick Information

Product Type: Power Management IC
Canonical Name: STMicroelectronics L6562N Power Management IC
Subcategory: PFC (Power Factor Correction)

L6562N Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected
Lead Free: Yes

L6562N Features

  • PFC Controller IC
  • 1MHz Switching Frequency
  • 40 µA Startup Current
  • 10.3V to 22V Supply Voltage
  • 8-DIP Through-Hole Package

L6562N Applications

  • Power factor correction in AC-DC converters.
  • Used in switch mode power supplies.
  • Suitable for offline power supply designs.
  • Ideal for lighting ballasts.

L6562N FAQs

5 frequently asked questions generated from this part’s specifications.
What is the supply voltage range of the L6562N?

10.3 V to 22 V.

What is the package type of the L6562N?

8-DIP (0.300", 7.62mm) through hole package.

What is the operating temperature range?

-25°C to 125°C.

What is the switching frequency?

1 MHz.

What is the startup current?

40 µA.
