| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
129 pcs
|
129 pcs | On Request | 1 | On Request | On Request | 16+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Class | |
| Contact Finish | |
| Contact Material | |
| Current Rating (Amps) | |
| Dimensions | |
| Failure Rate | |
| For Use With | |
| Fuse Size | |
| Fuse Type | |
| Fuseholder Type | |
| Mounting Type | |
| Number of Circuits | |
| Temperature | |
| Termination Style | |
| Voltage |

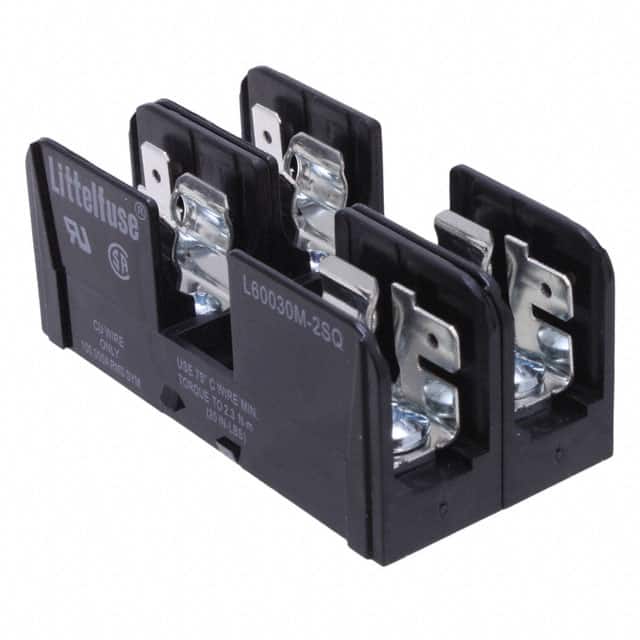

The Littelfuse L60030M2SQ is a POWR-GARD Midget Fuse Block with a 600V AC/DC voltage rating and a 30A current rating. This fuse block is designed for Class CC fuses and accommodates fuse sizes of 10mm x 38mm.
It features a chassis mount design with screw and quick connect termination styles, making it suitable for various industrial applications. The block is constructed from high-strength, high-temperature thermoplastic material for durability and resistance to heat damage. Its compact dimensions of 1.533 in W x 1.25 in D x 3 in H allow for space-saving installations.
This fuse block is gangable, allowing for configurations with any number of poles. It is designed to prevent the insertion of fuses with lower interrupting ratings or voltage ratings, enhancing safety. The clip design minimizes resistance and heat buildup during operation. The operating temperature range is up to 125 degrees C.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The Littelfuse L60030M2SQ fuse block has a voltage rating of 600V AC/DC.
The current rating for the Littelfuse L60030M2SQ fuse block is 30 A.
This fuse block is designed for Class CC cartridge fuses, specifically those measuring 10mm x 38mm.
The Littelfuse L60030M2SQ fuse block is designed for chassis mounting.
This fuse block features both screw terminals and quick connect termination styles.
The operating temperature range for this fuse block is up to 125 degrees C.
