| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
300 pcs
|
300 pcs | On Request | 1 | On Request | On Request | 17+ | On Request | On Request | |
|
20 pcs
|
20 pcs | On Request | 1 | On Request | On Request | 19+ | On Request | On Request | |
|
10 pcs
|
10 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Axis | |
| Bandwidth | |
| Current | |
| Features | |
| Operating Temperature | |
| Output Type | |
| Range ° | |
| Sensitivity (LSB | |
| Tape & Reel | |
| Type | |
| Voltage |

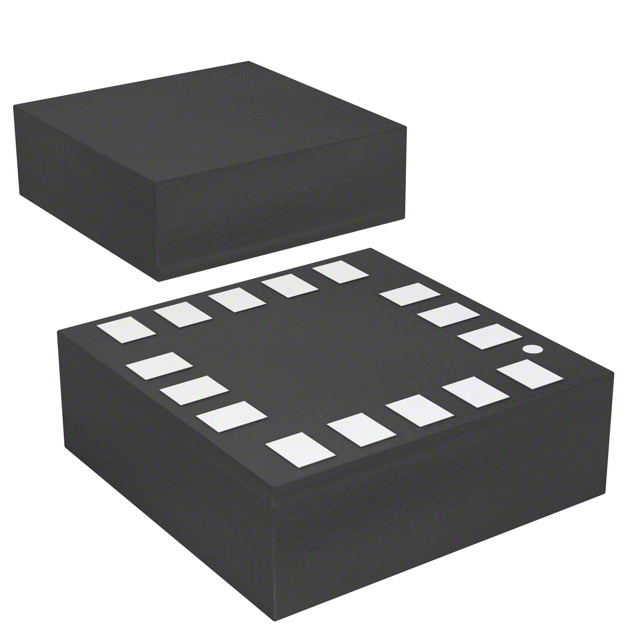

The STMicroelectronics L3GD20HTR is a digital motion sensor specifically designed as a gyroscope. It is suitable for applications requiring precise motion detection across three axes: pitch, roll, and yaw.
This gyroscope features adjustable bandwidth, allowing for customization of its frequency response, and selectable scale for varying sensitivity needs. It also includes a sleep mode for power efficiency and an integrated temperature sensor. The device operates within a voltage range of 2.2V to 3.6V and consumes approximately 5 mA of current.
Designed for integration into various electronic systems, the L3GD20HTR utilizes I²C and SPI communication protocols for data transfer. Its operating temperature range is from -40°C to 85°C. The component is supplied in a compact 16-LGA package, suitable for surface-mount applications.
Key specifications include a bandwidth ranging from 6.25Hz to 400Hz and a sensitivity range of 8.75 to 70 LSB/°/s. The measurement range can be set to ±245, 500, or 2000 °/s, providing flexibility for different motion sensing requirements.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.50 | $1.50 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating voltage is 2.2V to 3.6V.
The L3GD20HTR is available in a 16-LGA package.
The operating temperature range is -40°C to 85°C.
The RoHS status is RoHS3 Compliant.
