| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
17 pcs
|
17 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Configuration | |
| Dimensions | |
| Failure Rate | |
| Forward Voltage | |
| Height | |
| Lens Type | |
| Luminous Efficacy | |
| Luminous Flux | |
| SVHC Present | |
| Type | |
| Viewing Angle |

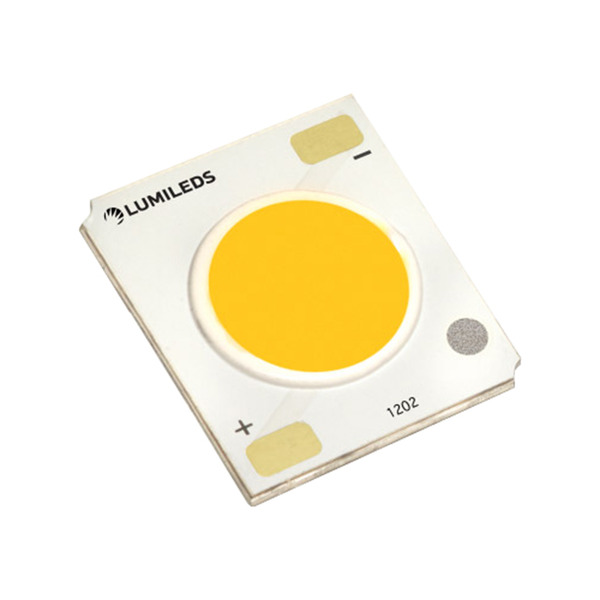

The Philips L2C1-3090120206AC0 is a Chip On Board (COB) LED module from the LUXEON CoB, CrispWhite series. This module provides 3000K warm white illumination with a high Color Rendering Index (CRI) of 90, ensuring accurate color representation. It operates at a typical forward voltage of 35.5V and a test current of 200mA, delivering a typical luminous flux of 625 lm and an efficacy of 88 lm/W.
The module features a 6.50mm diameter emitting surface and a wide 115° viewing angle, suitable for various lighting designs. Its dimensions are 12.00mm in length and 15.00mm in width, with a height of 1.50mm. The COB construction offers a compact and efficient light source.
This LED module is packaged in a Tube. It is compliant with RoHS3 standards and has a Moisture Sensitivity Level (MSL) of 1. The CrispWhite technology ensures excellent color quality and consistency, making it ideal for general lighting, architectural lighting, and accent lighting applications where color fidelity is important.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The L2C1-3090120206AC0 LED module has a typical color temperature of 3000K.
The Color Rendering Index (CRI) for the L2C1-3090120206AC0 is 90.
The typical forward voltage for the L2C1-3090120206AC0 is 35.5V.
The typical viewing angle of the L2C1-3090120206AC0 is 115 degrees.
The dimensions of the L2C1-3090120206AC0 are 12.00mm in length and 15.00mm in width.
The L2C1-3090120206AC0 is RoHS3 Compliant.
The Moisture Sensitivity Level (MSL) for the L2C1-3090120206AC0 is 1 Unlimited.
