Mfr Part #:

L22D1S001-AZZ00-000

Name: L22D1S001-AZZ00-000
Brand: Carling Technologies / Littelfuse
SKU: L22D1S001-AZZ00-000

Description:

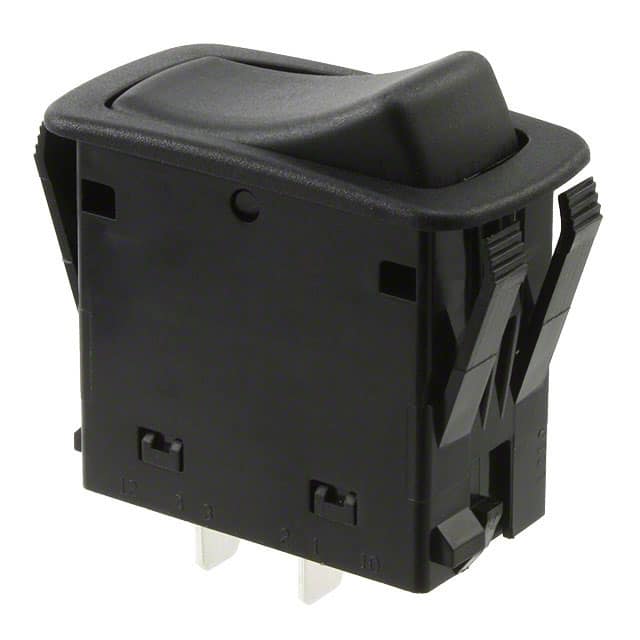

SWITCH ROCKER DPST-NO 20A 12V

Stock on Request

L22D1S001-AZZ00-000 Description

Short technical summary and product information.

SWITCH ROCKER DPST-NO 20A 12V

Mfr Standard Lead Time: 12 weeks (varies by distributor)

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

Category	Rocker Switches
Manufacturer Name	Carling Technologies / Littelfuse
Actuator Marking	No Marking
Actuator Type	Concave (Curved)
Circuit	DPST-NO
Color	Black
Current Rating (Amps)	20A (DC)
Features	Sealed - Fully
Ingress Protection	IP67 - Dust Tight, Waterproof
Mounting Type	Panel Mount, Snap-In
Operating Temperature	-40°C ~ 85°C
Panel Cutout Dimensions	Rectangular - 44.04mm x 22.02mm
Switch Function	Off-Mom
Termination Style	Quick Connect - 0.250" (6.3mm)
Voltage Rating	12 V
