| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
14,400 pcs
|
14400 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Actuator Length | |
| Actuator Type | |
| Circuit | |
| Contact Finish | |
| Contact Material | |
| Contact Resistance | |
| Contact Timing | |
| Current Rating (Amps) | |
| Insulation Resistance | |
| Lead Style | |
| Mounting Type | |
| Operating Temperature | |
| Storage Temperature | |
| Switch Function | |
| Termination Style | |
| Voltage Rating |

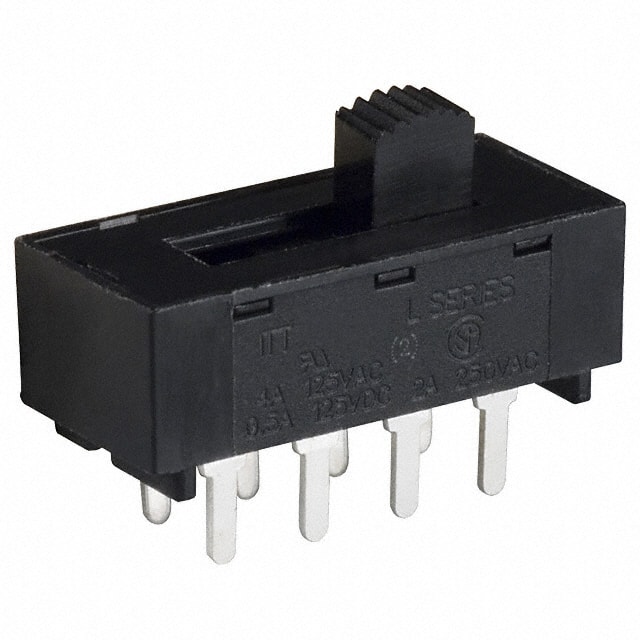

The C&K Components L203011MS02Q is a miniature slide switch from the L Series, designed for applications in communications equipment and lighting devices. This switch features a DP3T (Double Pole Triple Throw) circuit configuration with a contact rating of 4A at 125V AC/DC. It is designed for through-hole mounting and utilizes a standard actuator type.
The switch operates within a temperature range of -30°C to 65°C and has a contact resistance below 10 mΩ typical. The contacts are silver-plated copper, and the housing and actuator are made from durable 6/6 nylon. The termination style is PC Pin, suitable for direct board mounting.
This model offers positive detent and an enclosed housing for reliable operation. It is RoHS3 compliant and has an MSL rating of 1, indicating unlimited shelf life under standard conditions. The L203011MS02Q is a robust solution for various electronic switching needs.
| Qty | Low | High |
|---|---|---|
| 1+ | $3.45 | $3.45 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The L203011MS02Q slide switch has a contact rating of 4A at 125V AC or 28V DC, 2A at 250V AC, and 0.5A at 125V DC (UL).
The operating temperature range for the L203011MS02Q slide switch is -30°C to 65°C.
The L203011MS02Q slide switch supports through-hole mounting.
Yes, the L203011MS02Q slide switch is RoHS3 compliant.
