| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
160 pcs
|
160 pcs | On Request | 1 | On Request | On Request | 421 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Actuator Length | |
| Actuator Type | |
| Circuit | |
| Contact Finish | |
| Contact Material | |
| Contact Resistance | |
| Contact Timing | |
| Current Rating (Amps) | |
| Insulation Resistance | |
| Mounting Type | |
| Operating Temperature | |
| Switch Function | |
| Termination Style | |
| Voltage Rating |

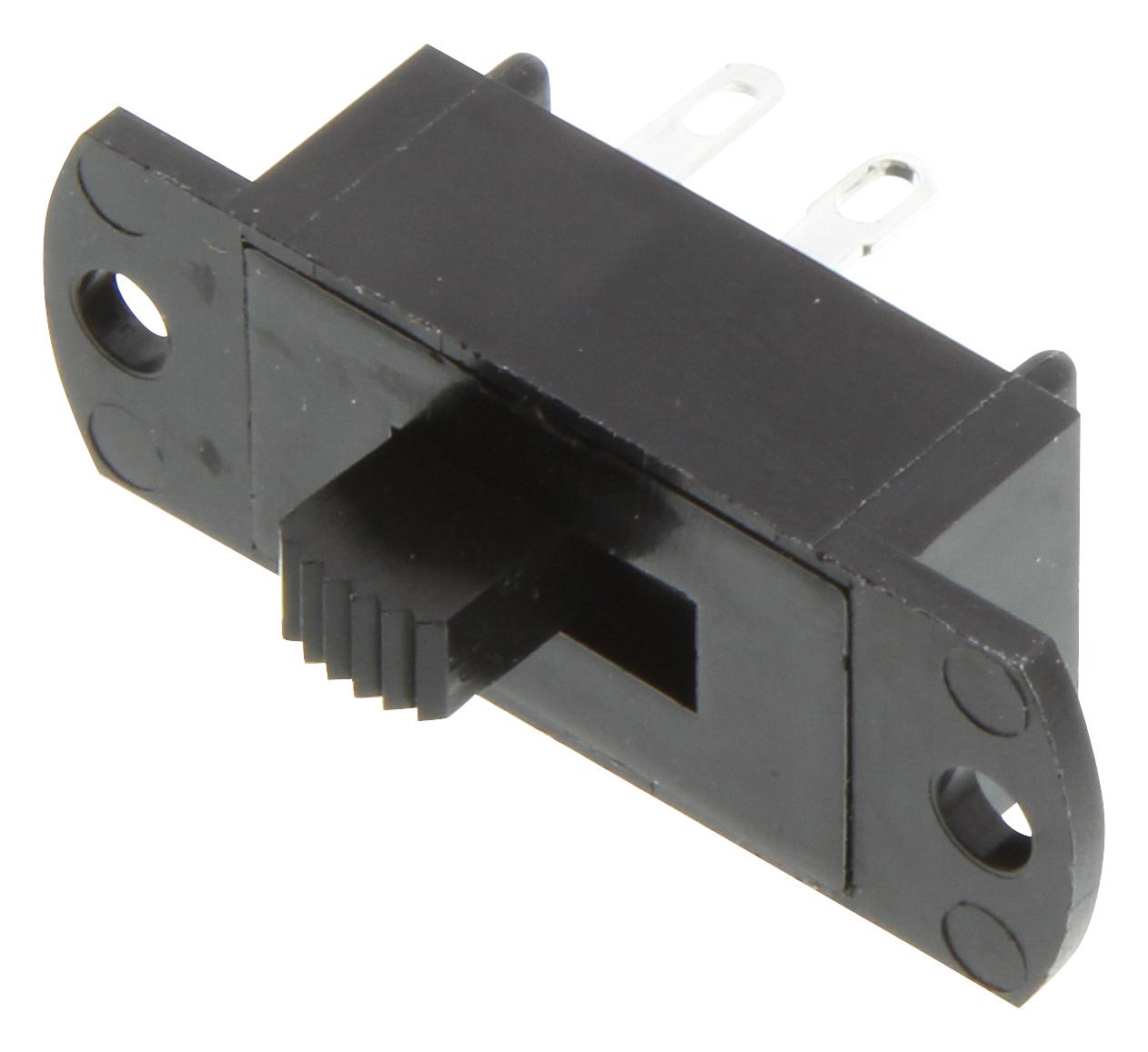

The C&K Components L Series L201011SS03Q is a miniature slide switch designed for applications requiring reliable switching. This DPST (Double Pole Single Throw) switch features a panel mount design with solder lug termination.
Key electrical specifications include a current rating of 4A at 125V AC/DC and an electrical life of 10,000 cycles at full load. The switch operates within a temperature range of -30°C to 65°C. It is constructed with a durable 6/6 nylon housing and actuator, and features copper contacts with silver plating for good conductivity.
This slide switch offers a positive detent mechanism and an enclosed housing for protection. It is suitable for various applications, including communications equipment and lighting devices, where a maintained or momentary function is required. The switch is RoHS3 compliant and has an MSL rating of 1.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.75 | $0.75 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The L201011SS03Q slide switch has a current rating of 4A at 125V AC/DC.
The operating voltage for the L201011SS03Q is 125V.
The operating temperature range for the L201011SS03Q is -30°C to 65°C.
The L201011SS03Q supports panel mounting.
The termination style for the L201011SS03Q is solder lug.
The contacts are made of copper with a silver plating.
The electrical life is 10,000 make-and-break cycles at full load.
