| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,152 pcs
|
1152 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Style | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Type | |
| Current Rating (Amps) | |
| Features | |
| Flange Feature | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| SVHC Present | |
| Shell Material, Finish | |
| Shell Size, Connector Layout | |
| Tape & Reel | |
| Termination |

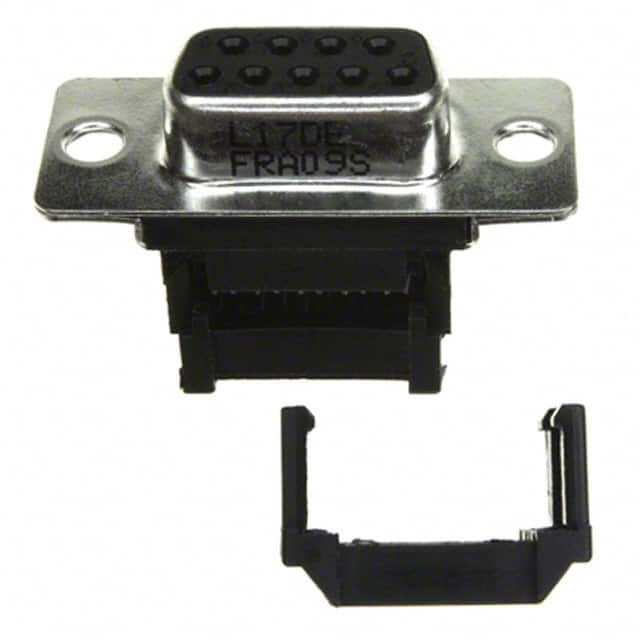

The L17DEFRA09S is a D-Sub receptacle from Amphenol ICC designed for reliable signal interconnection. It features 9 female sockets arranged in 2 rows, with a shell size of 1 (DE, E). The connector uses IDC (Insulation Displacement Connection) termination for ribbon cable, simplifying assembly without soldering. The mounting type is free hanging (in-line), making it suitable for cable-to-cable or cable-to-panel connections where a fixed mount is not required.
Key specifications include a current rating of 3A per contact, gold flash contact finish for corrosion resistance, and a steel shell with tin plating. The insulator material has a flammability rating of UL94 V-0. Additional design features include a feed through design and integrated strain relief, which enhance durability in high-vibration environments.
This connector is commonly used in data communication, industrial control, and instrumentation applications where a compact and reliable D-Sub interface is needed. The IDC termination allows for mass termination of ribbon cable, reducing assembly time and cost. The free hanging style provides flexibility in routing.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.62 | $2.62 |
| 10+ | $2.28 | $2.28 |
| 25+ | $1.97 | $1.97 |
| 96+ | $1.72 | $1.72 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
It has 9 positions arranged in 2 rows.
The current rating is 3A per contact.
It uses free hanging (in-line) mounting.
IDC (Insulation Displacement Connection) for ribbon cable.
Gold flash plating.
Yes, it features integrated strain relief and feed through.
