| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
576 pcs
|
576 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Automotive Grade | |
| Connector Style | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Type | |
| Current Rating (Amps) | |
| Features | |
| Flange Feature | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Shell Material, Finish | |
| Shell Size, Connector Layout | |
| Tape & Reel | |
| Termination | |
| Termination Style |

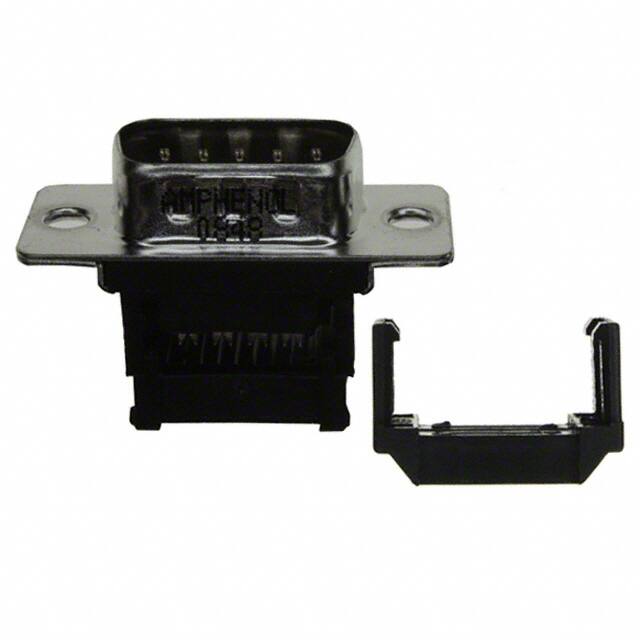

The L17DEFRA09P is a 9-position D-Sub plug connector manufactured by Amphenol ICC. It features a plug with male pins and a D-Sub connector style. The connector has 9 positions arranged in 2 rows, with a shell size of 1 (DE, E). Termination is via IDC (Insulation Displacement Connection) designed for ribbon cable, making it suitable for mass termination applications.
The connector is designed for free hanging (in-line) mounting and includes a housing/shell unthreaded flange feature. The contacts are signal type with gold flash finish, providing reliable conductivity. The shell is made of steel with tin plating for durability and EMI shielding.
Electrical rating: 3 A current rating. The insulator material has a UL94 V-0 flammability rating. Additional features include feed through, grounding indents, and strain relief, enhancing mechanical stability and signal integrity.
This connector is commonly used in data communication, computer peripheral, and industrial control applications where reliable signal interconnection is required.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.93 | $2.93 |
| 10+ | $2.69 | $2.69 |
| 25+ | $2.48 | $2.48 |
| 96+ | $2.30 | $2.30 |
| 288+ | $2.24 | $2.24 |
| 576+ | $2.13 | $2.13 |
| 1,056+ | $2.04 | $2.04 |
| 2,592+ | $1.92 | $1.92 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
9 positions.
3 A.
Free Hanging (In-Line).
IDC (Insulation Displacement Connection) for ribbon cable.
Gold flash.
Steel, tin plated.
UL94 V-0.
