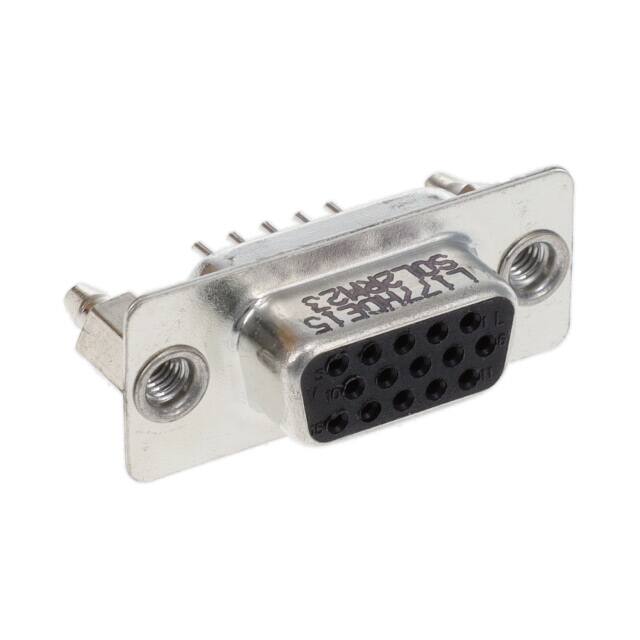

L177HDE15SOL2RM23 This is a 15-position, high density D-Sub receptacle by Amphenol ICC. It features female sockets, through hole solder termination, and gold-plated contacts.
Mfr Part #:

L177HDE15SOL2RM23

Available from 1 distributors
Mfr Name: Amphenol ICC
Amphenol ICC
This is a 15-position, high density D-Sub receptacle by Amphenol ICC. It features female sockets, through hole solder termination, and gold-plated contacts.
✓ Total Stock: 270 pcs
$ Price Range: $2.46

L177HDE15SOL2RM23 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
AA2DE ✓
Non-Authorised Inventory information
270 pcs
On Request
270 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

L177HDE15SOL2RM23 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connector Style
Connector Type
Contact Finish
Contact Finish Thickness
Contact Type
Current Rating (Amps)
Flange Feature
Lead Style
Material Flammability Rating
Mounting Type
Number of Positions
Number of Rows
SVHC Present
Shell Material, Finish
Shell Size, Connector Layout
Tape & Reel
Termination
View Similar Products (0)

L177HDE15SOL2RM23 Description

Short technical summary and product information.

The L177HDE15SOL2RM23 is a high density D-Sub receptacle from Amphenol ICC, designed for space-saving I/O applications. It features 15 female sockets arranged in 3 rows, with a current rating of 3A per contact. Contacts are gold-plated with a thickness of 16.0 µin (0.41 µm) for reliable signal integrity. The insulator is made of UL94 V-0 rated material, ensuring flammability compliance. The connector is mounted via through hole and terminated with solder, providing a robust mechanical connection. The shell is steel with tin plating, offering durability and EMI shielding. This connector is suitable for use in computers, peripherals, data communication, and industrial control systems.

L177HDE15SOL2RM23 Quick Information

Product Type: D-Sub Connector Assembly
Series: L177HDE
Canonical Name: D-Sub High Density Receptacle, 15 Position, Female Sockets, Through Hole, Solder
Subcategory: High Density D-Sub

L177HDE15SOL2RM23 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 (Unlimited)
REACH Status: REACH Unaffected

L177HDE15SOL2RM23 Estimated Pricing

Qty Low High
30+ $2.46 $2.46

Estimated market price range - modelled values for guidance only, not live distributor offers.

L177HDE15SOL2RM23 Features

  • 15-position high density D-Sub receptacle.
  • Through hole mounting with solder termination.
  • Gold-plated contacts for reliability.
  • Rated for 3A per contact.
  • Steel shell with tin plating.

L177HDE15SOL2RM23 Applications

  • Used in data communication equipment.
  • Ideal for industrial control interfaces.
  • Suitable for computer peripheral connections.
  • Applies in test and measurement devices.

L177HDE15SOL2RM23 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the number of positions?

15 positions.

What is the mounting type?

Through hole.

What is the current rating?

3A per contact.

What is the termination method?

Solder.

What is the shell material?

Steel, tin plated.

What is the flammability rating?

UL94 V-0.

Is it RoHS compliant?

RoHS3 compliant (unverified).
