| Category | |
| Manufacturer Name | |
| Actuator Type | |
| Approval Agency | |
| Breaker Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Illumination | |
| Mounting Type | |
| Number of Poles | |
| Storage Temperature | |
| Tape & Reel | |
| Termination | |
| Voltage Rating |

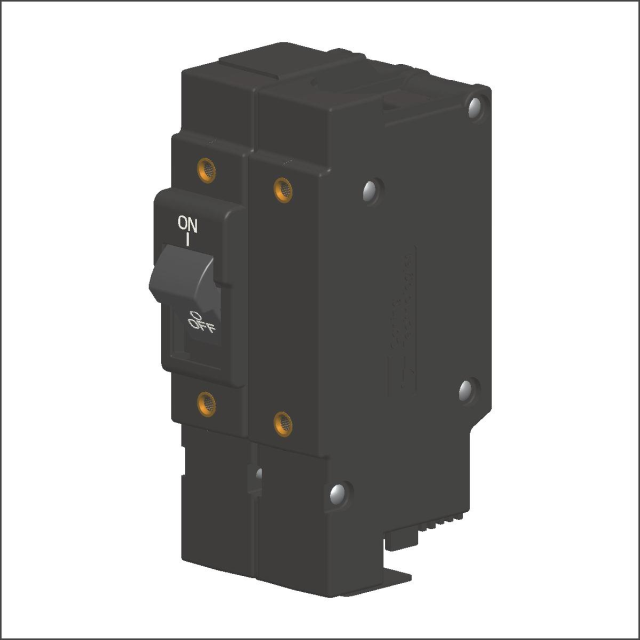

This L-Series hydraulic-magnetic circuit breaker from Littelfuse, part number L12-B0-24-620-42A-C3, is designed for reliable circuit protection in demanding OEM environments. It features a 20A current rating and a voltage rating of 240V across its two poles.
The breaker utilizes a hydraulic delay mechanism for trip time, specified at 50/60Hz, and possesses a medium interrupting capacity of 5,000 amps. The actuator type is a low-profile rocker, and it is non-illuminated. Mounting is achieved via a panel mount configuration with threaded inserts.
Compliance includes TUV certification to IEC/EN 60934 and UL 489 Listing. The RoHS status is listed as RoHS3 Compliant, MSL is 1 Unlimited, and REACH status is REACH Unaffected. These compliance details are based on available database information and may require verification.
This circuit breaker is suitable for various industrial applications requiring robust protection against overcurrents and short circuits. Its durable construction and agency approvals make it a dependable choice for integration into OEM equipment.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The current rating is 20A.
The voltage rating is 240V.
This circuit breaker has 2 poles.
It is a Magnetic (Hydraulic Delay) type circuit breaker.
The medium interrupting capacity is 5,000 amps.
It is designed for panel mounting.
