| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
4,693 pcs
|
4693 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
3,734 pcs
|
3734 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current Rating (Amps) | |
| DC Resistance (DCR) | |
| Frequency | |
| Height | |
| Inductance | |
| Length | |
| Material | |
| Mounting Type | |
| Operating Temperature | |
| Q @ Freq | |
| Shielding | |
| Storage Temperature | |
| Supplier Device Package | |
| Tape & Reel | |
| Termination Style | |
| Tolerance | |
| Type | |
| Width |

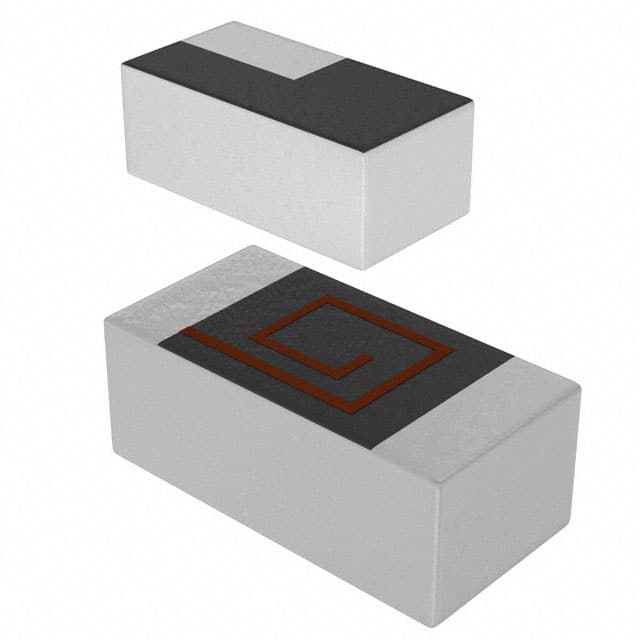

The Kyocera AVX L06031R8CGSTR is a thin-film RF inductor designed for high-frequency applications. It features a tight inductance tolerance of ±0.2nH and a nominal inductance value of 1.8nH.
This unshielded inductor has a current rating of 1A and a maximum DC resistance of 70mOhm. It operates effectively up to 10GHz and maintains a Q factor of 20 at 450MHz. The operating temperature range is -55°C to +125°C.
Designed for surface mounting, the component comes in a 0603 (1608 Metric) package. Its dimensions are 1.60mm in length and 0.81mm in width, with a height of 0.71mm. The thin-film multilayer technology ensures consistent electrical and physical characteristics.
Applications include vehicle location systems, mobile communications, satellite TV receivers, matching networks, 5G applications, and filters.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.20 | $0.20 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The inductance value is 1.8 nH.
The current rating is 1 A.
The maximum DC resistance is 70 mOhm.
The minimum self-resonant frequency is 10000 MHz.
It is available in the 0603 (1608 Metric) package size.
The operating temperature range is -55°C to +125°C.
