| Category | |
| Manufacturer Name | |
| LED Color | |
| Mounting Type | |
| Operating Temperature | |
| Peak Forward Current | |
| Power Dissipation | |
| Reverse Current | |
| Reverse Voltage | |
| Storage Temperature | |
| Tape & Reel | |
| Viewing Angle |

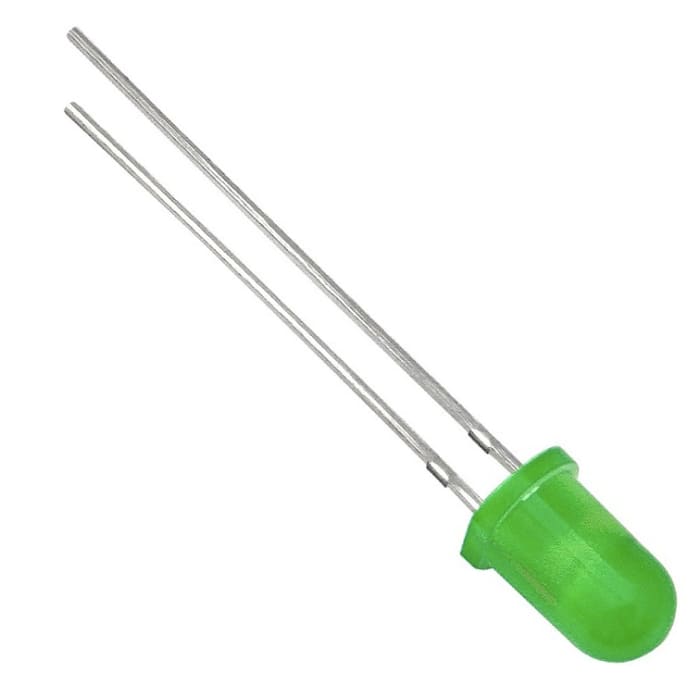

The Kingbright L-53SGD-5V is a green light-emitting diode (LED) designed for various illumination and indicator applications. It has a typical forward voltage of 5V at 20mA and a maximum forward current of 11.5mA. The LED emits light at a wavelength of 565nm with a spectral line halfwidth of 30nm and a dominant wavelength of 568nm. Its luminosity is rated at 20 millicandelas, and it offers a viewing angle of 60 degrees.
This LED is packaged in a 5 mm (T-1 3/4) through-hole package, suitable for through-hole mounting on printed circuit boards. It is supplied in bulk packaging, making it suitable for large-scale assembly. The device operates within a temperature range of -40°C to 85°C and complies with RoHS standards. It is designed for use in indicator lights, display panels, and other electronic devices requiring visual signaling.
The LED's electrical characteristics include a maximum power dissipation of 85mW, a maximum reverse voltage of 5V, and a reverse current of 10μA. It also has a peak forward current of 150mA. The device's environmental compliance status indicates RoHS3 compliance, though some data points are unverified.
Overall, the L-53SGD-5V is a reliable, standard green LED suitable for various electronic applications requiring indicator lighting and visual signaling.
| Qty | Low | High |
|---|---|---|
| 1+ | $5.85 | $5.85 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The typical forward voltage is 5V at 20mA.
It is packaged in a 5 mm (T-1 3/4) through-hole package.
It operates within a temperature range of -40°C to 85°C.
Yes, it is RoHS3 compliant.
