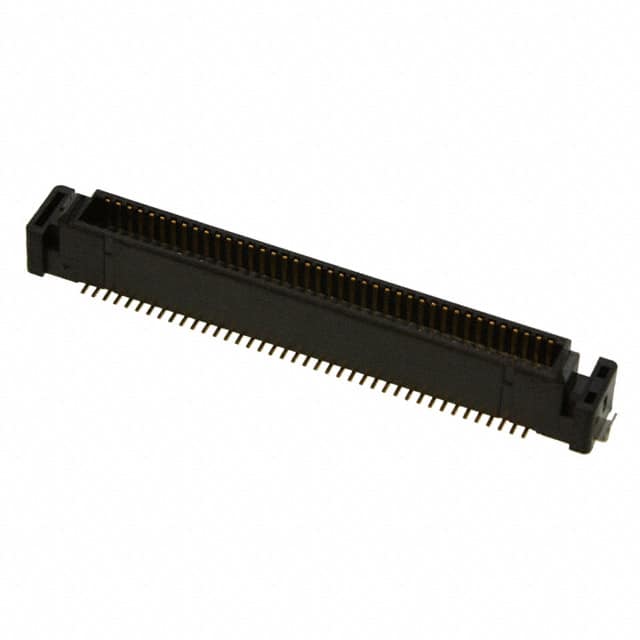

The JAE Electronics KX15-80K4DE is a board-to-board connector plug belonging to the KX15 series. It features 80 positions arranged in 2 rows with a fine 0.8mm pitch, enabling high-density interconnection in space-constrained designs. The connector uses surface mount termination and gold contact finish with a thickness of 4.00µin (0.100µm) for reliable signal integrity.
The plug has a height above board of 0.226" (5.74mm) and supports versatile mated stacking heights of 6mm, 9mm, 12mm, 15mm, and 18mm, allowing flexible board spacing. Mechanical features include a board guide for mating alignment and solder retention for secure placement during reflow soldering.
The component is indicated as RoHS3 compliant, MSL Level 1 (unlimited floor life), and REACH unaffected, though these compliance claims are unverified in the available data. Electrical specifications such as current and voltage ratings are not provided in the current source.
Typical applications include mezzanine board stacking in consumer electronics, telecommunications, and industrial equipment where compact and reliable board-to-board connections are required.
| Qty | Low | High |
|---|---|---|
| 1+ | $7.48 | $7.48 |
| 10+ | $6.77 | $6.77 |
| 25+ | $6.39 | $6.39 |
| 50+ | $6.24 | $6.24 |
| 100+ | $4.90 | $4.90 |
| 1,000+ | $4.60 | $4.60 |
| 2,500+ | $4.48 | $4.48 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The KX15-80K4DE has 80 positions arranged in 2 rows.
The contact pitch is 0.80mm (0.031 inches).
The KX15-80K4DE uses surface mount (SMT) termination with solder.
The contact finish is gold with a thickness of 4.00µin (0.100µm).
The KX15-80K4DE supports mated stacking heights of 6mm, 9mm, 12mm, 15mm, and 18mm.
It includes a board guide for alignment and solder retention for secure attachment.
