| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
55 pcs
|
55 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Features | |
| Height Above Board | |
| Mated Stacking Heights | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Pitch | |
| Tape & Reel |

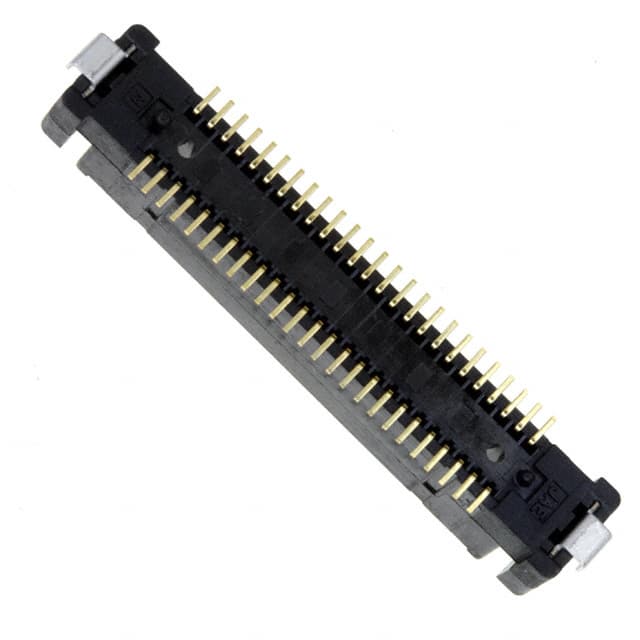

The KX15-50K4DE is a mezzanine board-to-board connector from JAE Electronics. It is a plug connector with center strip contacts, offering 50 positions in 2 rows with a 0.80mm pitch. The connector is surface mount and has a height above board of 5.74mm. It supports mated stacking heights of 6mm, 9mm, 12mm, 15mm, and 18mm, providing flexibility in board spacing. The contacts are gold plated with a thickness of 0.100µm, ensuring reliable electrical connections. Features include board guide and solder retention for secure mounting. This connector is suitable for applications requiring compact, high-density interconnections between parallel circuit boards. The surface mount package allows for automated assembly, and the gold contact finish provides corrosion resistance and durability.
| Qty | Low | High |
|---|---|---|
| 1+ | $6.96 | $6.96 |
| 10+ | $5.91 | $5.91 |
| 25+ | $5.54 | $5.54 |
| 50+ | $5.28 | $5.28 |
| 100+ | $5.02 | $5.02 |
| 250+ | $4.71 | $4.71 |
| 500+ | $4.48 | $4.48 |
| 1,000+ | $4.27 | $4.27 |
| 2,500+ | $4.21 | $4.21 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
50 positions.
0.80 mm.
Surface mount.
Gold with 0.100µm thickness.
6mm, 9mm, 12mm, 15mm, and 18mm.
Board guide and solder retention.
RoHS3 compliant (unverified).
