Mfr Part #:

KX14-20K5DE

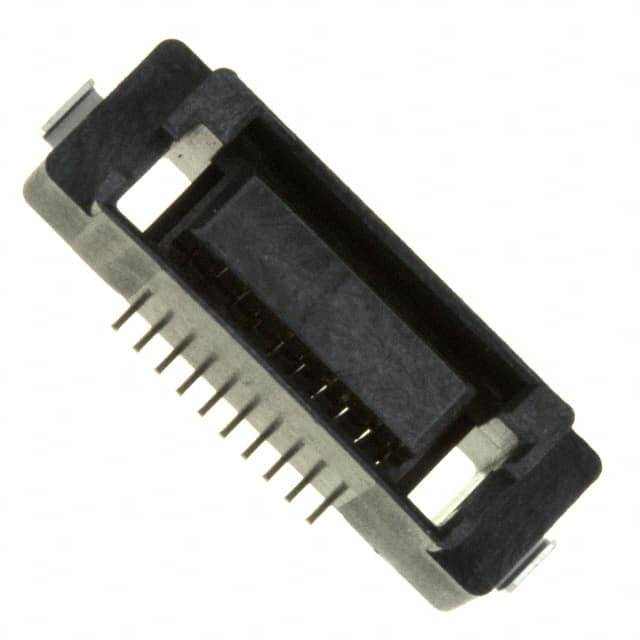

KX14-20K5DE is a 20-position, 2-row receptacle connector from JAE Electronics. It features 0.80mm pitch, surface mount mounting, and gold contact finish.

✓ Total Stock: 14 pcs

$ Price Range: $1.42 - $2.64

KX14-20K5DE Available from 1 distributor

✓ Authorised

✓ Non-Authorised

Distributor		Stock	Pricing	MOQ	PKG	Lead Time	Date Code	On Order Quantity	On Order Delivery
Hybrid Electronics ✓ Non-Authorised Inventory information	14 pcs On Request	14 pcs	On Request	1	On Request	On Request	On Request	On Request	On Request

KX14-20K5DE Description

Short technical summary and product information.

The KX14-20K5DE is a receptacle connector from JAE Electronics, part of a board-to-board mezzanine interconnect solution. It features 20 positions arranged in 2 rows with a fine 0.80mm pitch, enabling compact and high-density PCB designs. The connector is surface mount (SMT) compatible, facilitating automated assembly and reducing board space.

Mechanical design includes a height above board of 6.55mm, supporting mated stacking heights of 7mm, 8mm, or 9mm for flexible board spacing. The contacts are gold finished with a thickness of 4.00µin (0.100µm), ensuring reliable electrical connections and corrosion resistance. Additional features include integrated board guides and solder retention structures for improved alignment and mechanical stability during soldering.

This connector is intended for use in arrays, edge type, mezzanine (board-to-board) applications where parallel or perpendicular PCB stacking is required. Its robust design and fine pitch make it suitable for a variety of commercial and industrial electronic assemblies.

KX14-20K5DE Quick Information

Product Type: Board-to-Board Receptacle Connector

Canonical Name: 20 Position 0.80mm Pitch Receptacle, Outer Shroud Contacts, Surface Mount

Subcategory: Mezzanine Board-to-Board Connectors

KX14-20K5DE Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

KX14-20K5DE Estimated Pricing

Qty	Low	High
1+	$2.64	$2.64
10+	$2.24	$2.24
25+	$2.00	$2.00
100+	$1.90	$1.90
250+	$1.78	$1.78
500+	$1.70	$1.70
1,000+	$1.59	$1.59
2,500+	$1.49	$1.49
5,000+	$1.42	$1.42

Estimated market price range - modelled values for guidance only, not live distributor offers.

KX14-20K5DE Features

20-position, 2-row receptacle connector.
0.80mm pitch for fine-pitch designs.
Surface mount mounting for compact layouts.
Gold contact finish for reliable connections.
Board guide and solder retention features.

KX14-20K5DE Applications

Ideal for mezzanine board-to-board connections.
Suitable for compact electronic assemblies.
For stacking heights of 7mm to 9mm.

KX14-20K5DE FAQs

6 frequently asked questions generated from this part’s specifications.

How many positions does the KX14-20K5DE connector have?

It has 20 positions arranged in 2 rows.

What is the pitch of this connector?

The pitch is 0.80mm (0.031 inches).

What mounting type does this connector use?

It uses surface mount (SMT) mounting.

What is the contact finish?

The contact finish is gold with a thickness of 4.00µin (0.100µm).

What stacking heights does this connector support?

It supports mated stacking heights of 7mm, 8mm, and 9mm.

What special features does this connector have?

It includes a board guide and solder retention features.

Category	Arrays, Edge Type, Mezzanine (Board to Board)
Manufacturer Name	JAE Electronics
Connector Type	Receptacle, Outer Shroud Contacts
Contact Finish	Gold
Contact Finish Thickness	4.00µin (0.100µm)
Features	Board Guide, Solder Retention
Height Above Board	0.258" (6.55mm)
Lead Spacing	0.8 mm
Mated Stacking Heights	7mm, 8mm, 9mm
Mounting Type	Surface Mount
Number of Positions	20
Number of Rows	2
Pitch	0.80mm (0.031")
SVHC Present	Not Present
Tape & Reel	Yes
