| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| Type | |
| Voltage | |
| Width |

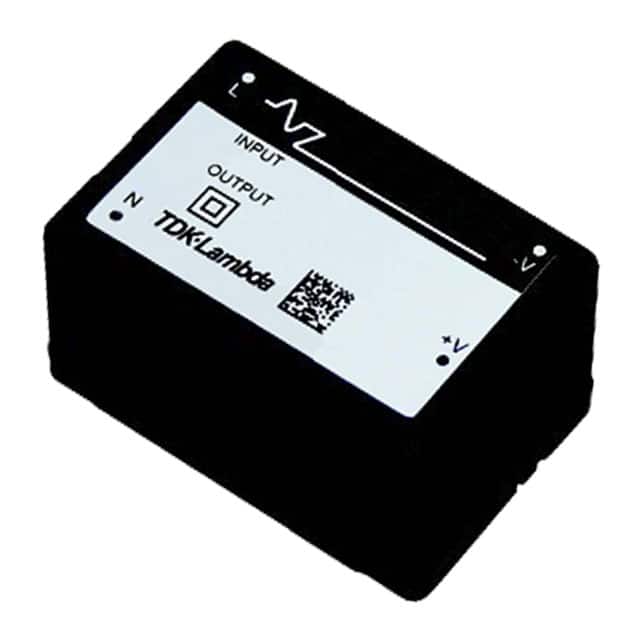

The TDK Corporation KWS10A-15 is an enclosed AC/DC converter with a power rating of 10W. It accepts a wide input voltage range of 85-265 VAC or 120-370 VDC, making it suitable for global applications.
This converter features a single output and provides 700mA of current. Its efficiency is rated at 82%. The unit is designed for through-hole mounting and comes in a 4-DIP Module package. Key features include universal input capability and suitability for ITE (Commercial) applications.
The operating temperature range is -10°C to 85°C with derating. The dimensions are 38.1mm in length, 25.4mm in width, and 21.5mm in height. It is CE approved.
Compliance information indicates RoHS3 compliance, MSL 1, and REACH unaffected status, though these are unverified.
85~265 VAC or 120~370 VDC.
15V at 700mA.
-10°C to 85°C with derating.
4-DIP Module.
82%.
Yes, CE approved.
Through Hole.
